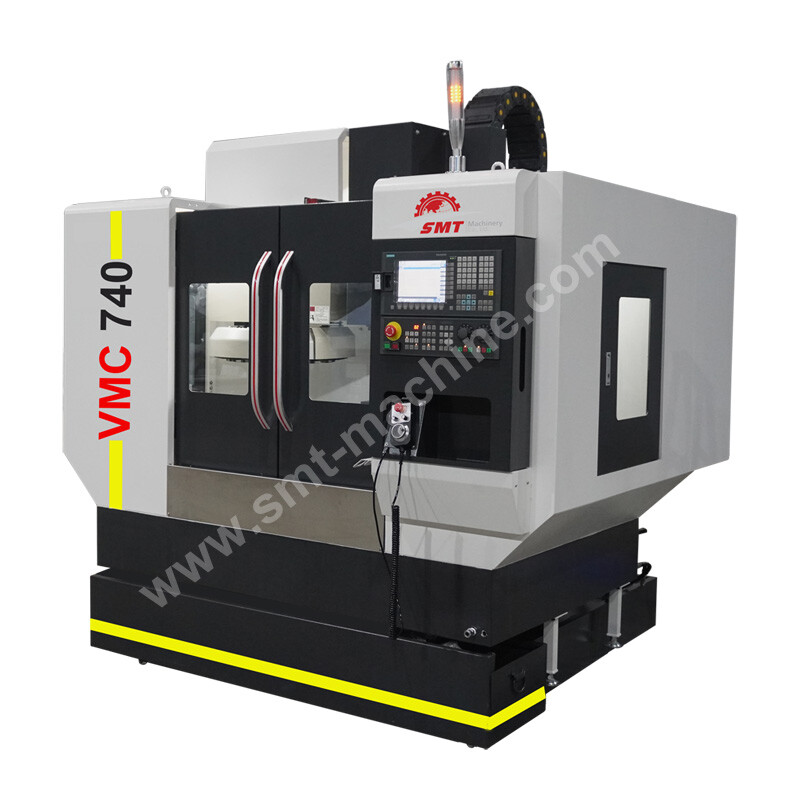

VMC 740
* The VMC 740 is compact design suitable for machining small and medium-sized products.
* Precision linear guides and powerful servo drives.
* Stable cast frame in rigid bed construction.
* Precision ball screws with preloaded nuts in all 3 axes.
* Central lubrication for guide ways and ball screws.
MESSAGE
Model No.VMC 740
Working area
Table size800x400mm
Table load capacity500kg
T-slot (number/width/distance)3/16/150mm
Spindle nose to table surface distance120-520mm
Spindle to coloum distance420mm
Travel
Travel X-aixs700mm
Travel Y-aixs400mm
Travel Z-aixs400mm
Headstock
Spindle speed8000rpm
Spindle taperBT40
Feed speed
Rapid feed X-axis36000mm/min
Rapid feed Y-axis36000mm/min
Rapid feed Z-axis36000mm/min
Work feed1-10000mm/min
Tool head
Number of tool station16T
Tool station typeUmbrella
Diameter of tool78mm
Tool length (max)300mm
Tool weight (max)8kgs
Tool changing time2.3sec
Accuracy
Positioning accuracies±0.005mm
Repeatable positioning accuracies±0.003mm
Drive capacity
Main motor5.5kw
X-axis servo motor2.0kw
Y-axis servo motor2.0kw
Z-axis servo motor2.0kw
Total power consumption15kw
Ball screws and Linears
Diameter of X/Y/Z axis ball screwsΦ32
Linear guideway width/guideway number/block number-X axis30/2/4
Linear guideway width/guideway number/block number-Y axis30/2/4
Linear guideway width/guideway number/block number-Z axis30/2/4
Shipping information
Net weight2800kg
Machine working dimension2200x2180x2550mm
Packing size2280x2360x2500mm
Coolant tank capacity280L
Standard accessories (Brand)Optional accessories
Siemens 808D control system10000rpm spindle with   oil cooling
Schneider electrical unitsThe 4th of axis
Spindle (Taiwan - Kenturn or Volis)
Arm tool station (Taiwan - Okada or Relib)
Linear guideway (Taiwan - Hiwin or PMI)
Ball screws (Taiwan - Hiwin or PMI)
Bearing (Janpan - Koyo)
Pneumatic parts (Taiwan - Mindman)
Screw conveyor
