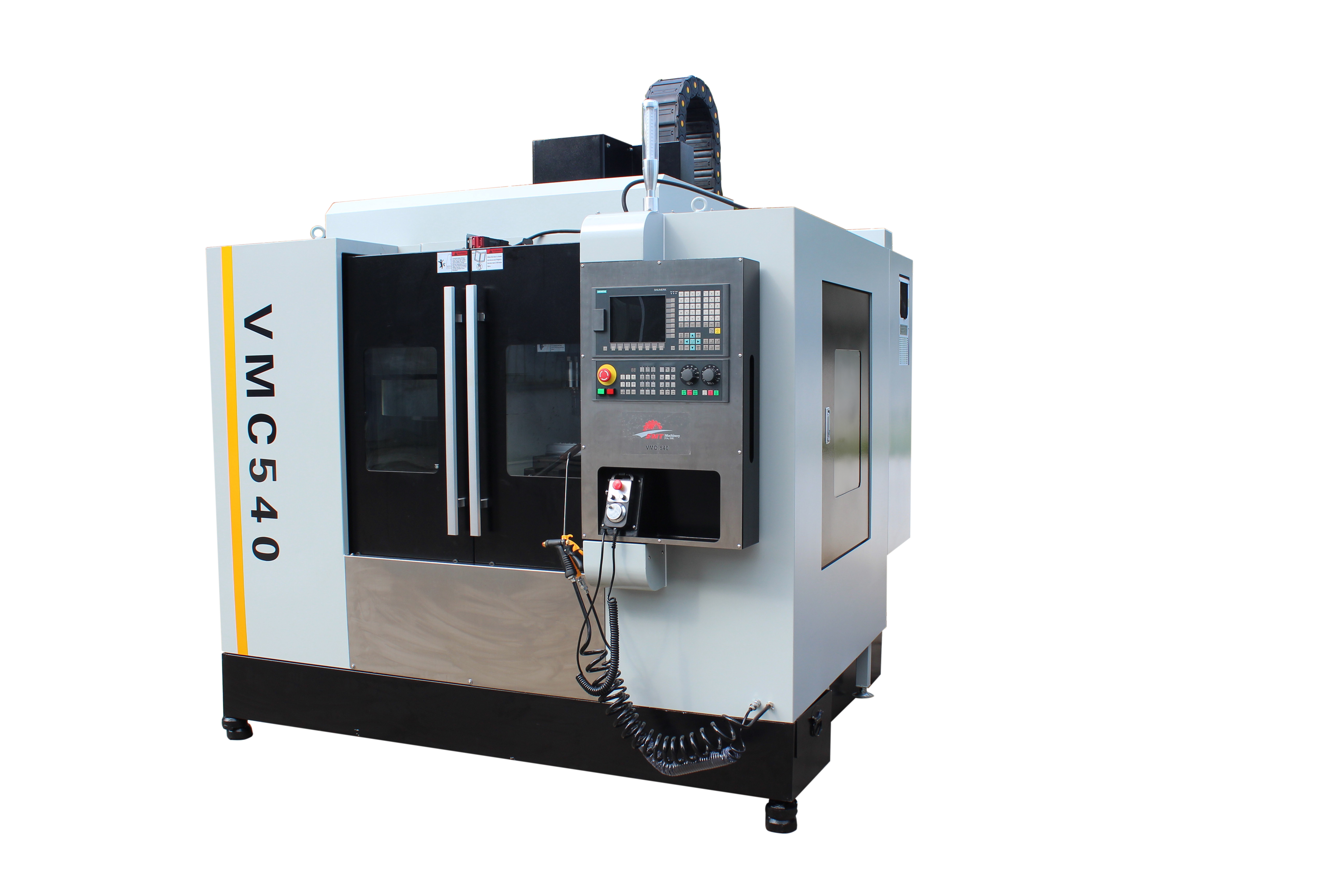

VMC 540
* The VMC 540 is compact design suitable for machining small and medium-sized products.
* Precision linear guides and powerful servo drives.
* Stable cast frame in rigid bed construction.
* Precision ball screws with preloaded nuts in all 3 axes.

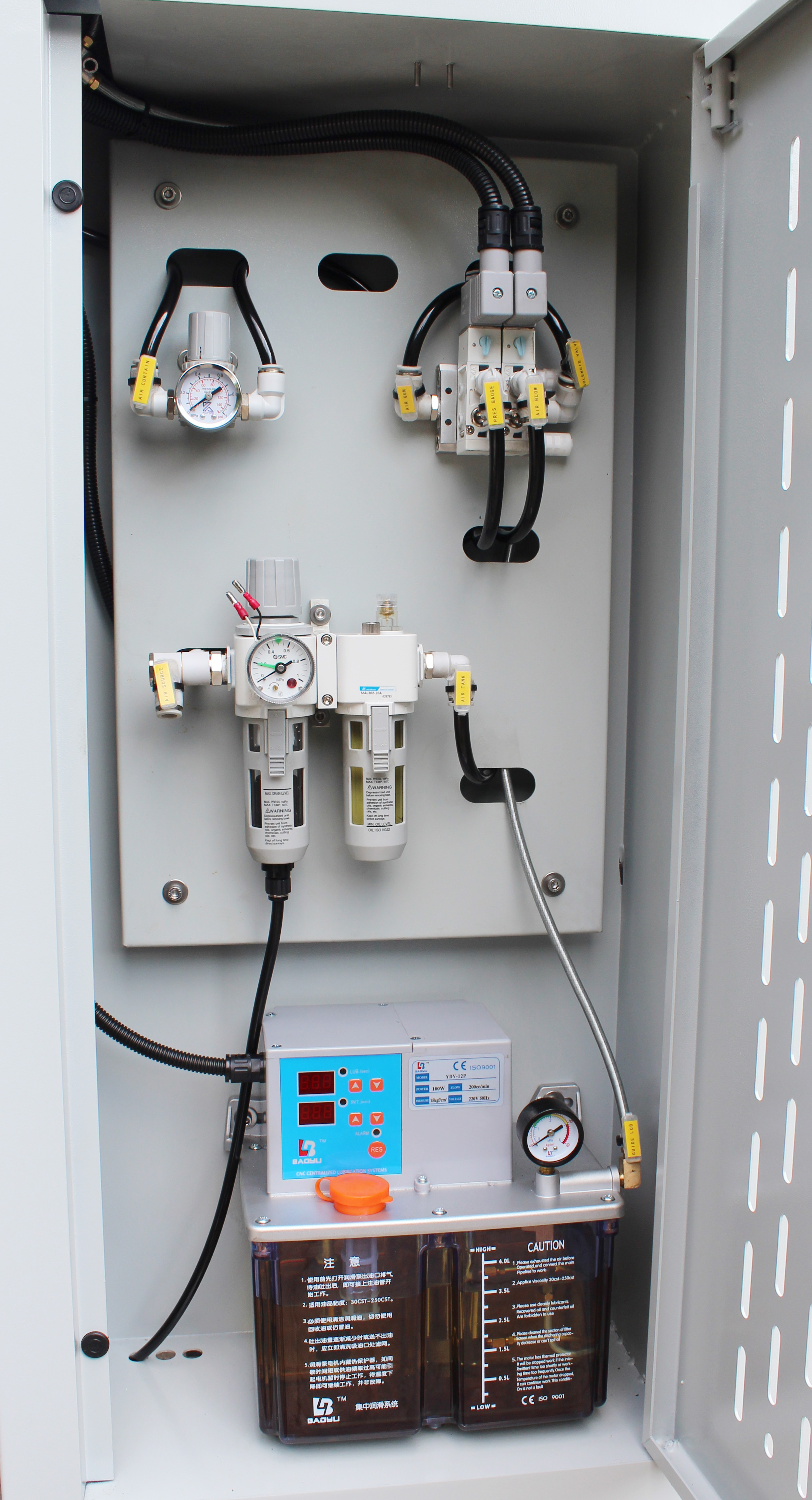

* Central lubrication for guide ways and ball screws.
MESSAGE
Model No.VMC 540

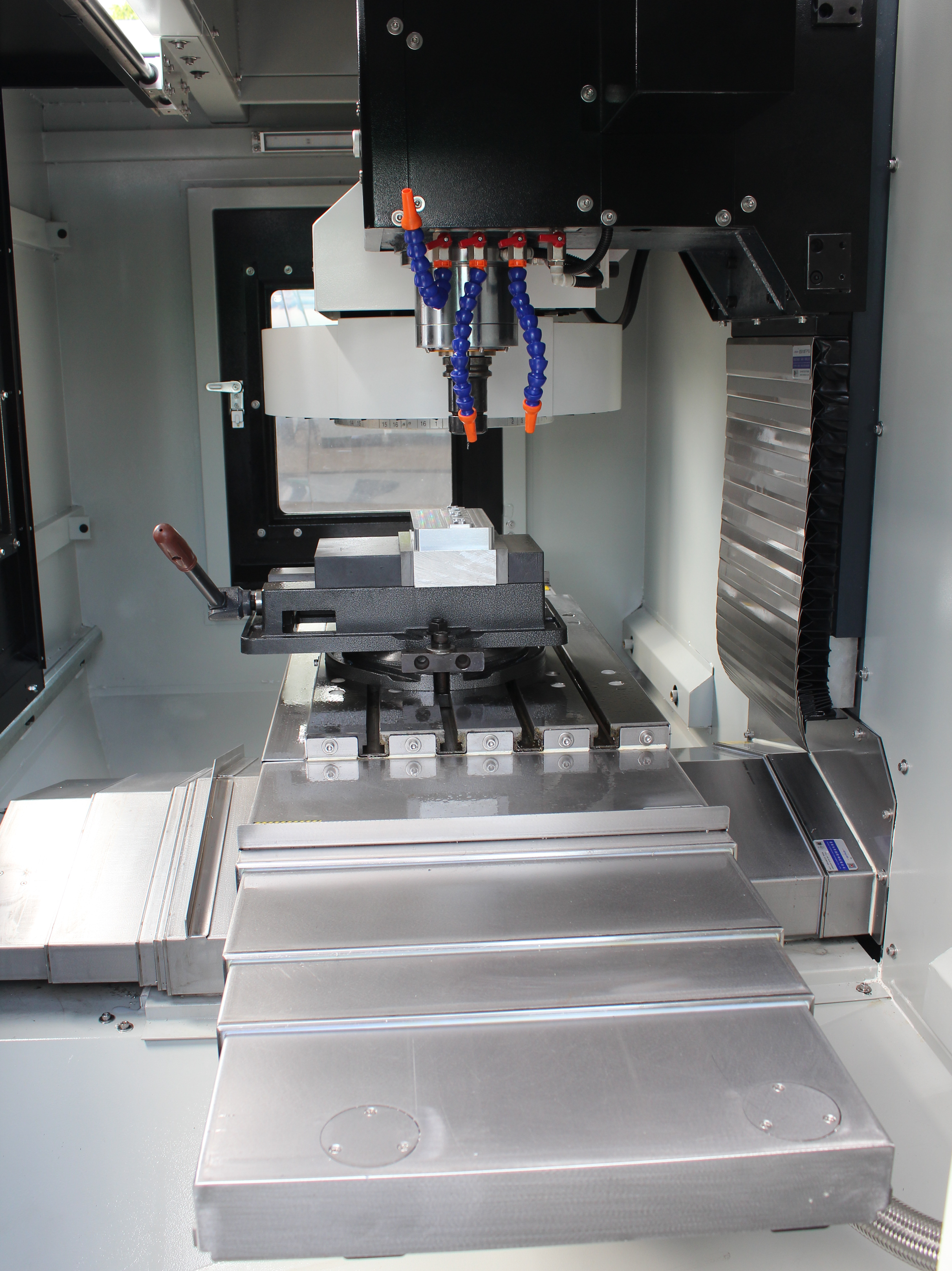

Working area

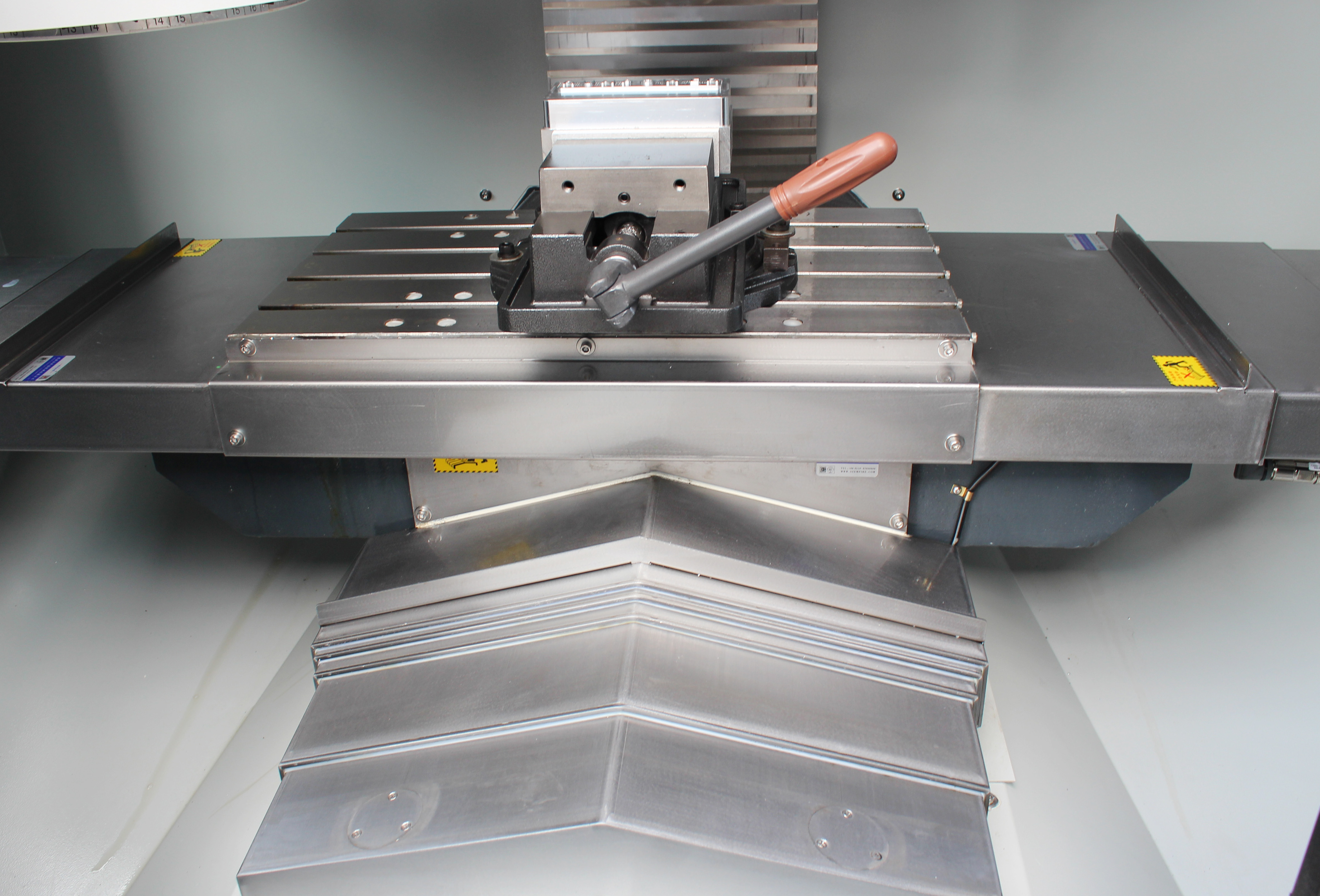

Table size600x400mm
Table load capacity350kg
T-slot (number/width/distance)4/14/100mm
Spindle nose to table surface distance120-520mm
Spindle to coloum distance390mm
Travel
Travel X-aixs500mm
Travel Y-aixs380mm
Travel Z-aixs400mm

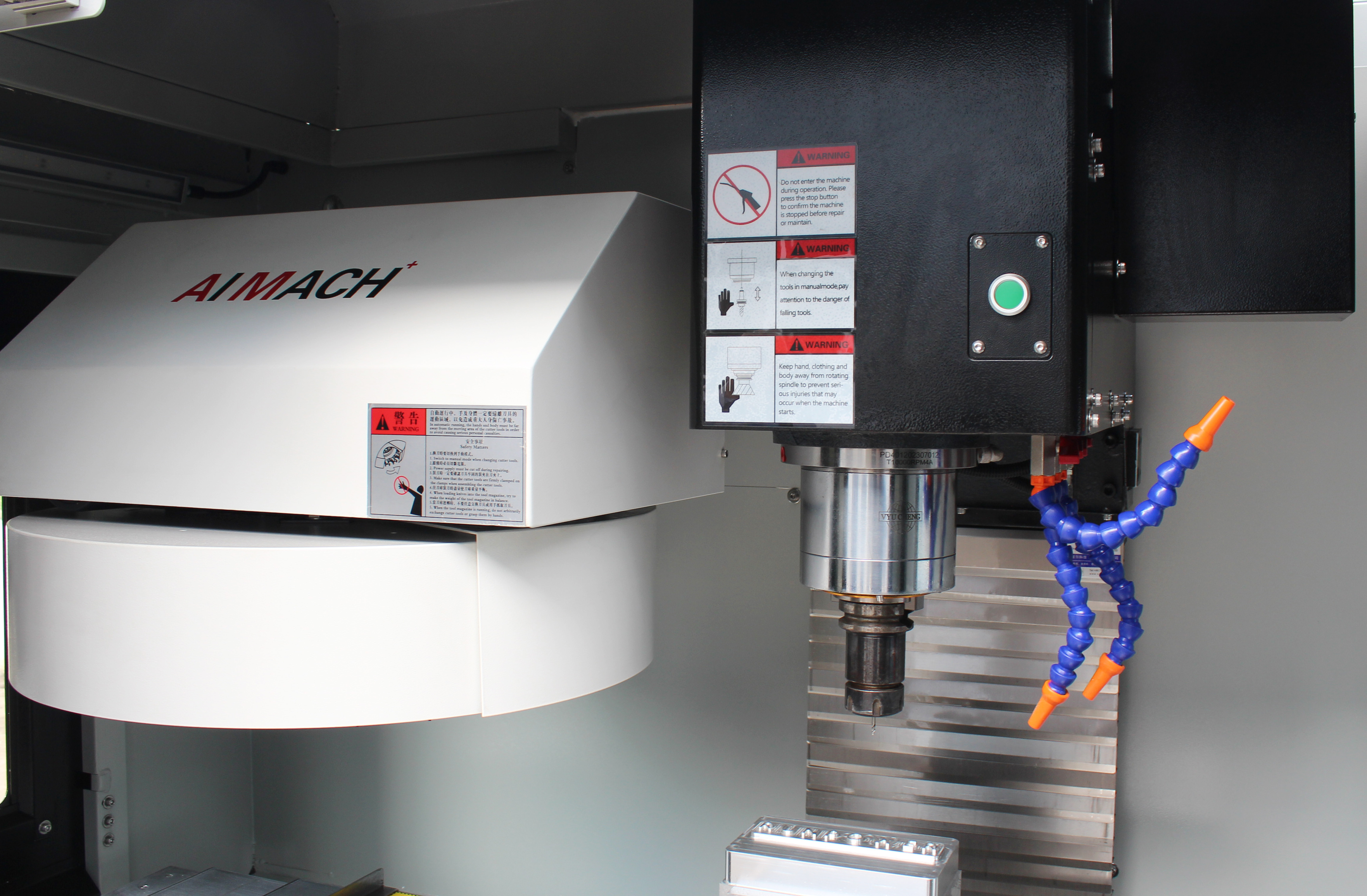

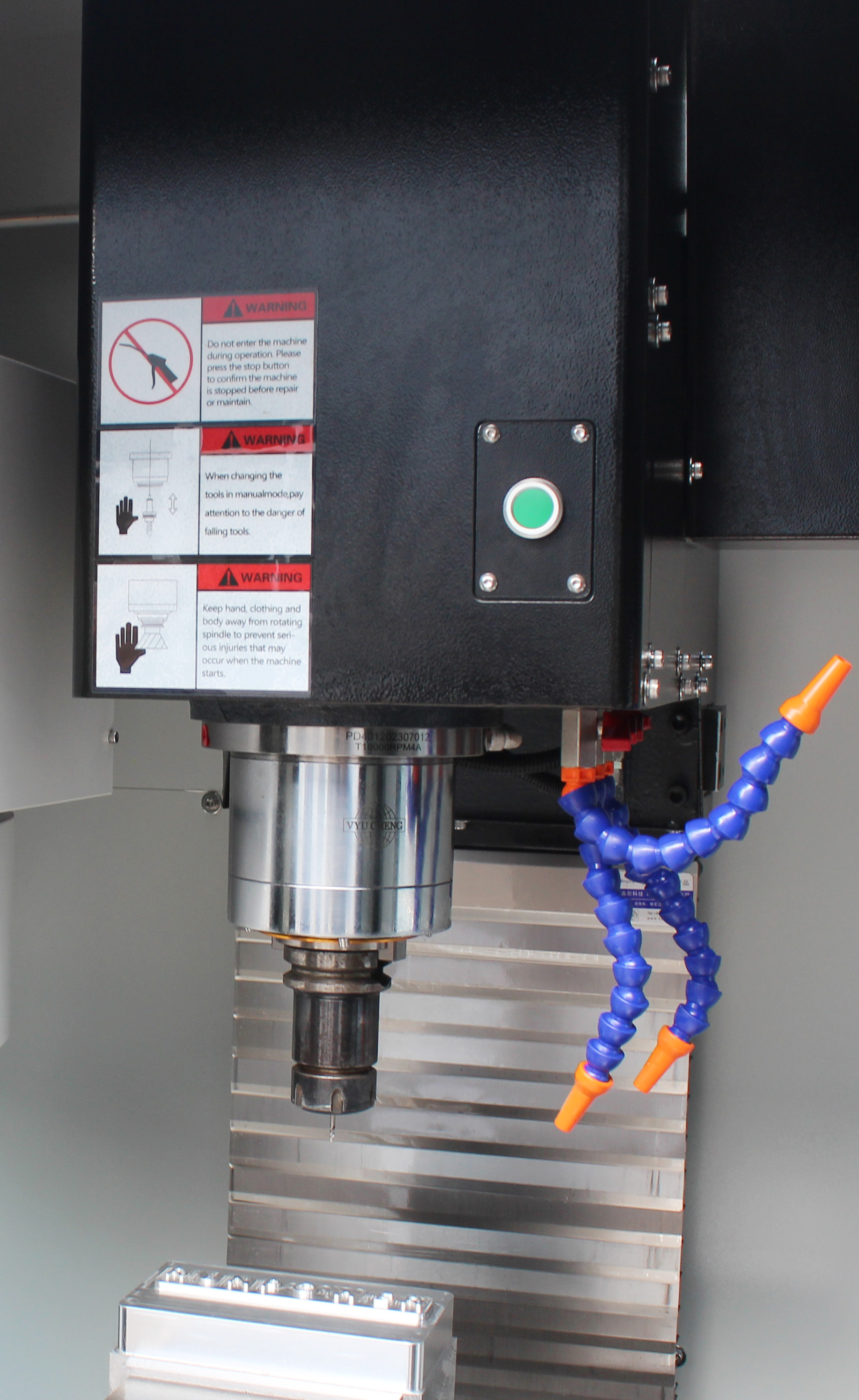

Headstock
Spindle speed8000rpm
Spindle taperBT40
Feed speed
Rapid feed X-axis15000mm/min
Rapid feed Y-axis15000mm/min
Rapid feed Z-axis15000mm/min
Work feed1-10000mm/min
Tool head
Number of tool station16T
Tool station typeUmbrella
Diameter of tool78mm
Tool length (max)250mm
Tool weight (max)8kgs
Tool changing time2.3sec
Accuracy
Positioning accuracies±0.005mm
Repeatable positioning accuracies±0.003mm
Drive Capacity
Main motor3.7kw
X-axis servo motor1.5kw
Y-axis servo motor1.5kw
Z-axis servo motor2.0kw
Total power consumption9kw
Ball screws and Linear
Diameter of X/Y/Z axis ball screwsΦ32
Linear guideway width/guideway number/block number-X axis25/2/4
Linear guideway width/guideway number/block number-Y axis30/2/4
Linear guideway width/guideway number/block number-Z axis30/2/4
Shipping information
Net weight2500kg
Machine working dimension2135x2060x2350mm
Packing size2235x2160x2290mm
Coolant tank capacity210L
Standard accessories (Brand)Optional accessories

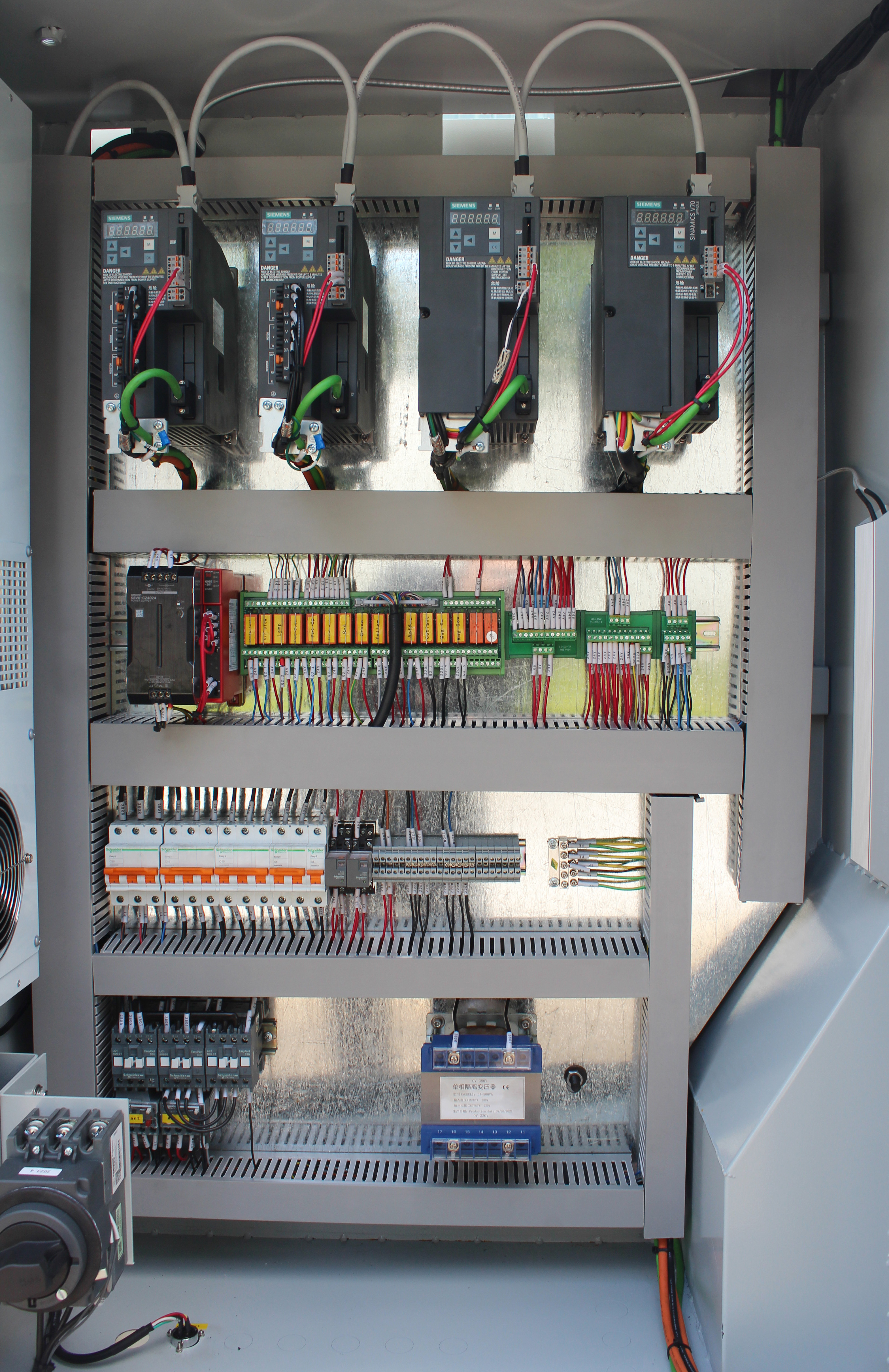

Siemens 808D control system10000rpm spindle with oil cooling
Schneider electrical unitsThe 4th of axis
Spindle (Taiwan - Kenturn or Volis)
Arm tool station (Taiwan - Okada or Relib)
Linear guideway (Taiwan - Hiwin or PMI)
Ball screws (Taiwan - Hiwin or PMI)
Bearing (Janpan - Koyo)
Pneumatic parts (Taiwan - Mindman)
Screw conveyor
