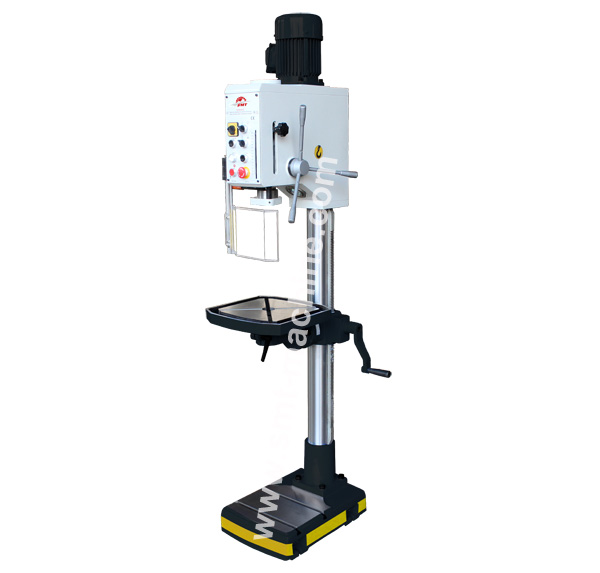

GB 28 Profi
· Industrial gear drive column drilling machine
· Lubrication gear head with quite operation
· Adjustable drill depth stop with scale,reading at the front
· Working table rotate 360° and swivels ±45°
· Rigid constructuion of table and base
· Automatic tool release device
· Powerful 2-speed motor
· 24V controlling wiring
· Equip with safety spindle guard, LED work lamp
MESSAGE

Model   No.

GB 28 Pro

Drilling capacity

28mm

Tapping capacity

M16

Table capacity

50kg

Spindle taper

MT3

Spindle speeds

75-3200rpm/12

Spindle feed

~

Dsitance spindle to column

250mm

Dsitance spindle to tabel

820mm

Dsitance spindle to base

1220mm

Spindle stroke

130mm

Column diameter

100mm

Table size

380×380mm

T-slot of table

14mm

Working surface of base

335×335mm

T-slot of base

14mm

Net weigh

240kg

Gross weight

270kg

Feeding motor

~

Coolant pump

~

Main motor

0.85/1.5kw

Dimension of machine

700x380x1950mm

Packing size

2100×400x750mm

Standard accessories

Optional accessories

LED work lamp

Coolant system

Spindle cover

Keyless drill chuck

Tapping function

BSM 150 vice

Drill chuck

TQ 100 vice

Arbor

58pcs clamping kits

Tools
