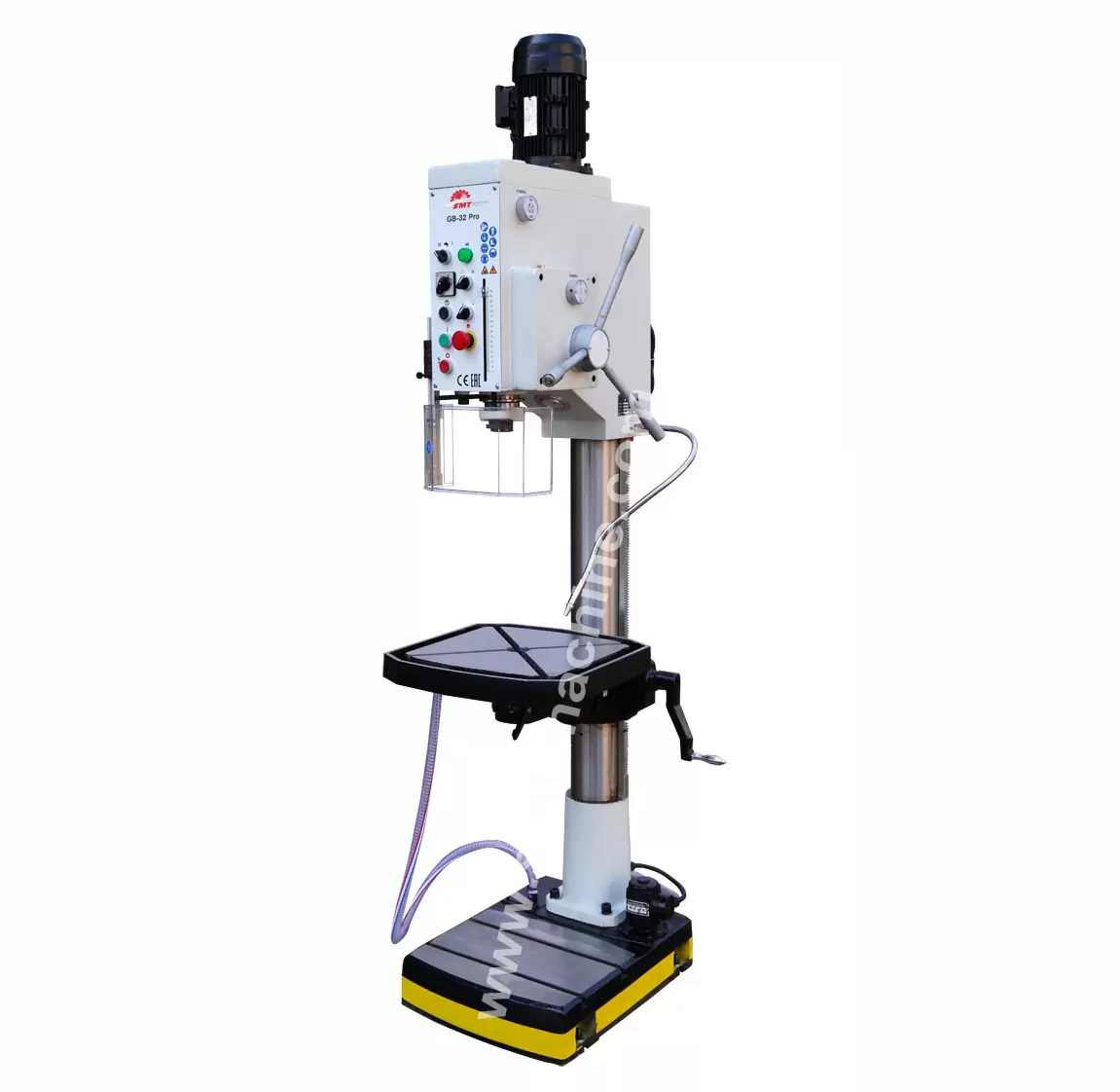

GB 32 Profi
Feature:
· Industrial gear drive column drilling machine
· Lubrication gear head with quite operation
· Adjustable drill depth stop with scale,reading at the front
· Working table rotate 360° and swivels ±45°
· Rigid constructuion of table and base
· Automatic tool release device
· Powerful 2-speed motor
· Electromagnetic spindle sleeve feed,tapping device
· 24V controlling wiring
· Rigid constructuion of base with coolant tank
· Equip with safety spindle guard, LED work lamp, coolant system
MESSAGE
Model   No.GB 32 Pro
Drilling capacity35mm
Tapping capacityM20
Table capacity75kg
Spindle taperMT4
Spindle speeds75-3200rpm/12
Spindle feed0.06/0.12/0.18   mm/r
Dsitance spindle to column300mm
Dsitance spindle to tabel670mm
Dsitance spindle to base1280mm
Spindle stroke160mm
Column diameter125mm
Table size460×460mm
T-slot of table14mm
Working surface of base420×340mm
T-slot of base14mm
Net weigh360kg
Gross weight390kg
Feeding motor~
Coolant pump0.04kw
Main motor1.1/1.5kw
Dimension of machine900x540x2120   mm
Packing size2200×540×750mm
Standard accessoriesOptional accessories
LED work lamp
Spindle coverKeyless drill chuck
Coolant systemBSM 150 vice
Tapping functionTQ 100 vice
Automatic spindle feed58pcs clamping kits
Drill chuck
Arbor
Tools
