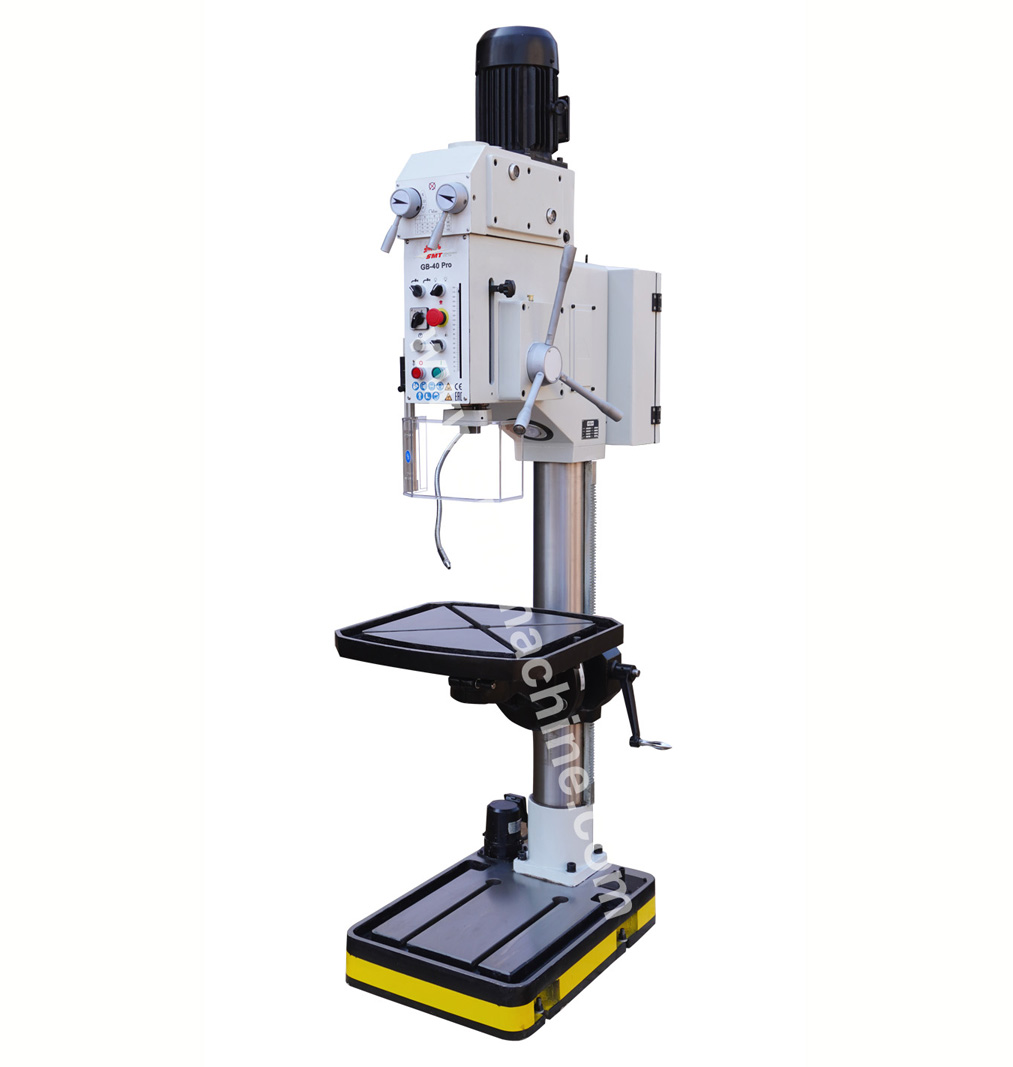

GB 40
Feature:
· Industrial gear drive column drilling machine
· Lubrication gear head with quite operation
· Adjustable drill depth stop with scale,reading at the front
· Working table rotate 360° and swivels ±45°
· Rigid construction of table and base
· Automatic tool release device
· Powerful 2-speed motor
· Electromagnetic spindle sleeve feed,tapping device
· 24V controlling wiring
· Rigid constructuion of base with coolant tank
· Equip with safety spindle guard, LED work lamp, coolant system
MESSAGE
Model   No.GB 40
Drilling capacity40mm
Tapping capacityM24
Table capacity75kg
Spindle taperMT4
Spindle speeds50-1450rpm/18
Spindle feed0.10/0.20mm/r
Dsitance spindle to column350mm
Dsitance spindle to tabel700mm
Dsitance spindle to base1200mm
Spindle stroke180mm
Column diameter140mm
Table size560×560mm
T-slot of table18mm
Working surface of base505×540mm
T-slot of base14mm
Net weigh460kg
Gross weight510kg
Feeding motor~
Coolant pump0.075kw
Main motor0.85/1.5KW
Diamesion of machine960x560x2250mm
Packing size2270×580×1150mm
Standard accessoriesOptional accessories
LED work lampKeyless drill chuck
Spindle coverBSM 150 vice
Coolant systemTQ 100 vice
Tapping function58pcs clamping kits
Automatic spindle feed
Drill chuck
Arbor
Tools
