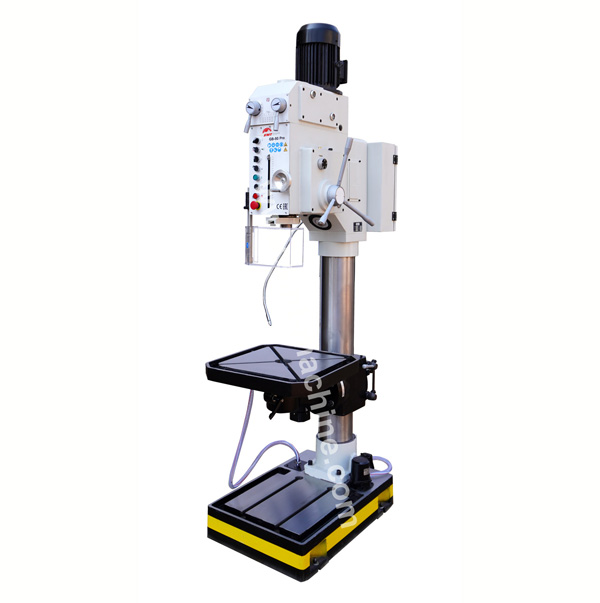

GB 50
Feature:
· Industrial gear drive column drilling machine
· Lubrication gear head with quite operation
· Adjustable drill depth stop with scale,reading at the front
· Working table rotate 360° and swivels ±45°
· Rigid constructuion of table and base
· Automatic tool release device
· Powerful 2-speed motor
· Electromagnetic spindle sleeve feed,tapping device
· Motorized work table up and down
· 24V controlling wiring
· Rigid construction of base with coolant tank
· Equip with safety spindle guard, LED work lamp, coolant system
MESSAGE
Model   No.GB 50
Drilling capacity50mm
Tapping capacityM26
Table capacity100kg
Spindle taperMT4
Spindle speeds50-1450rpm/18
Spindle feed0.1/0.2/0.3/0.4   mm/r
Dsitance spindle to column375mm
Dsitance spindle to tabel800mm
Dsitance spindle to base1325mm
Spindle stroke210mm
Column diameter180mm
Table size580×580mm
T-slot of table18mm
Working surface of base860×580mm
T-slot of base18mm
Net weigh760kg
Gross weight840kg
Feeding motor (work table)0.75kw
Coolant pump0.075w
Main motor2.2/3.0kw
Dimension of machine1050x590x2150mm
Packing size1120×750×2250mm
Standard accessoriesOptional accessories
LED work lampKeyless drill chuck
Spindle coverBSM 200 vice
Coolant systemTQ 140 vice
Tapping function58pcs clamping kits
Automatic spindle feed
Motorized worktable
Drill chuck
Arbor
Tools
