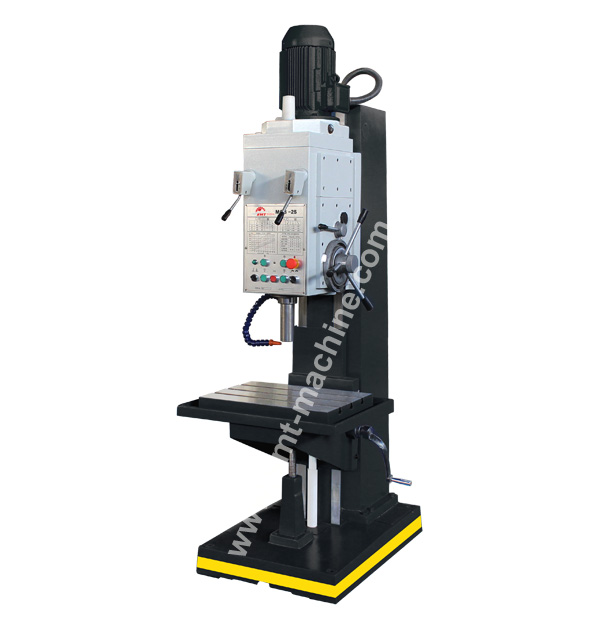

MGB 32
Feature:
· The box column drilling machines are the heavyweight.
· Lubrication gear head with quite operation
· High torque and drilling capacity
· Table and drill head can be positioned in height
· Rigid constructuion of table and base
· Mechanical spindle auto-feed, tapping function is available
· Widely spindle speeds and feeds provide wonderful machining function
· Main Schneider electrical components provide quality
· Rigid constructuion of base with coolant tank
· Equip with safety spindle guard, LED work lamp, coolant system
MESSAGE
Model   No.MGB 25MGB 32
Drilling capacity25mm32mm
Tapping capacityM16M22
Table capacity200kg200kg
Spindle taperMT3MT4
Spindle speeds50~2000rpm/950~2000rpm/9
Spindle feed0.056~1.80mm/r   (9)0.056~1.80mm/r   (9)
Dsitance spindle to column280mm280mm
Dsitance spindle to tabel710mm680mm
Dsitance spindle to base~~
Spindle stroke200mm200mm
Drill head travel200mm200mm
Work table travel300mm300mm
Column diameter~~
Table size550×400mm550×400mm
T-slot of table14mm14mm
Working surface of base~~
T-slot of base~~
Net weigh950kg950kg
Gross weight1070kg1070kg
Feeding motor (work table)~~
Coolant pump0.09kw0.09kw
Main motor2.2kw2.2kw
Dimension of machine960x850x2340mm960x850x2340mm
Packing size2340×800×1390mm2340×800×1390mm
Standard accessoriesOptional accessories
LED work lampKeyless drill chuck
Safety spindle coverTQ 200 vice
Coolant system58pcs clamping kits
Tapping function

Automatic spindle feed

Drill chuck

Arbor

Tools
