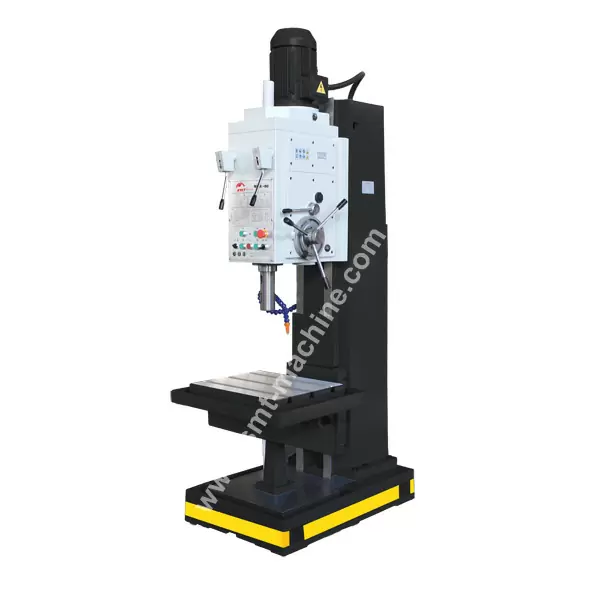

MGB 50
Feature:
· The box column drilling machines are the heavyweight.
· Lubrication gear head with quite operation
· High torque and drilling capacity
· Table and drill head can be positioned in height
· Rigid constructuion of table and base
· Mechanical spindle auto-feed, tapping function is available
· Widely spindle speeds and feeds provide wonderful machining function
· Main Schneider electrical components provide quality
· Rigid constructuion of base with coolant tank
· Equip with safety spindle guard, LED work lamp, coolant system
MESSAGE
Model   No.MGB 40MGB 50
Drilling capacity40mm50mm
Tapping capacityM30M42
Table capacity300kg300kg
Spindle taperMT4MT5
Spindle speeds31.5~1400rpm/1245~850rpm/9
Spindle feed0.056~1.80mm/r   (9)0.056~1.80mm/r   (9)
Dsitance spindle to column335mm335mm
Dsitance spindle to tabel740mm725mm
Dsitance spindle to base~~
Spindle stroke250mm250mm
Drill head travel200mm195mm
Work table travel315mm315mm
Column diameter~~
Table size560×480mm560×480mm
T-slot of table18mm18mm
Working surface of base~~
T-slot of base~~
Net weigh1250kg1250kg
Gross weight1400kg1400kg
Feeding motor (work table)~~
Coolant pump0.09kw0.09kw
Main motor3.0kw4.0kw
Dimension of machine1040x910x2540mm1040x910x2540mm
Packing size2530×800×1520mm2530×800×1520mm
Standard accessoriesOptional accessories
LED work lampKeyless drill chuck
Safety spindle coverTQ 200 vice
Coolant system58pcs clamping kits
Tapping function

Automatic spindle feed

Drill chuck

Arbor

Tools
