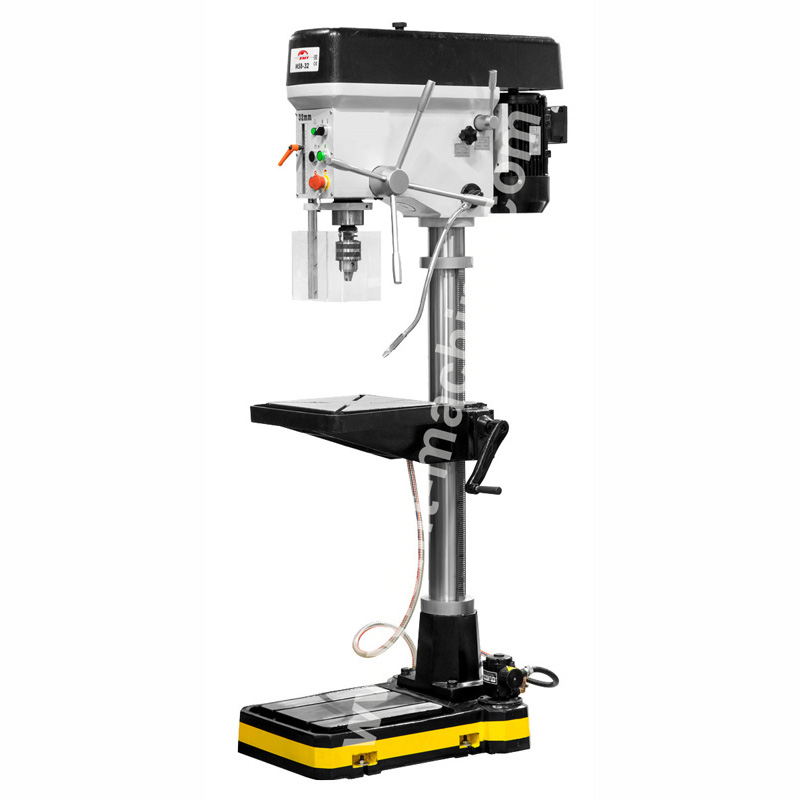

MSB 32
· Heavy duty belt drive column drilling machine for workshop
· Belt drill head with very quite operation
· Adjustable drill depth stop with scale,reading at the front
· Working table rotate 360° and swivels ±45°
· Rigid constructuion of table and base with coolant tank
· Main Schneider electrical components provide quality
· 24V controlling wiring
· Equip with safety spindle guard, LED work lamp, coolant system
MESSAGE

Model   No.

MSB 32

Drilling capacity

32mm

Tapping capacity

M20

Table capacity

50kg

Spindle taper

MT3

Spindle speeds

320-1820rpm/5

Spindle feed

~

Dsitance spindle to column

265mm

Dsitance spindle to tabel

815mm

Dsitance spindle to base

1240mm

Spindle stroke

150mm

Column diameter

100mm

Table size

330×330mm

T-slot of table

14mm

Working surface of base

380×310mm

T-slot of base

14mm

Net weigh

330kg

Gross weight

355kg

Feeding motor

0.75kw

Coolant pump

90w

Main motor

1.5kw

Dimension of machine

570x940x1590mm

Packing size

640×1040x2050mm

Standard   accessories

Optional accessories

LED work lamp

Keyless drill chuck

Coolant system

BSM 150 vice

Tapping function

TQ 100 vice

Spindle cover

58pcs clamping kits

Drill chuck 5-20mm/B18


Arbor MT3/B18


Sleeve MT3/MT2


Tools
