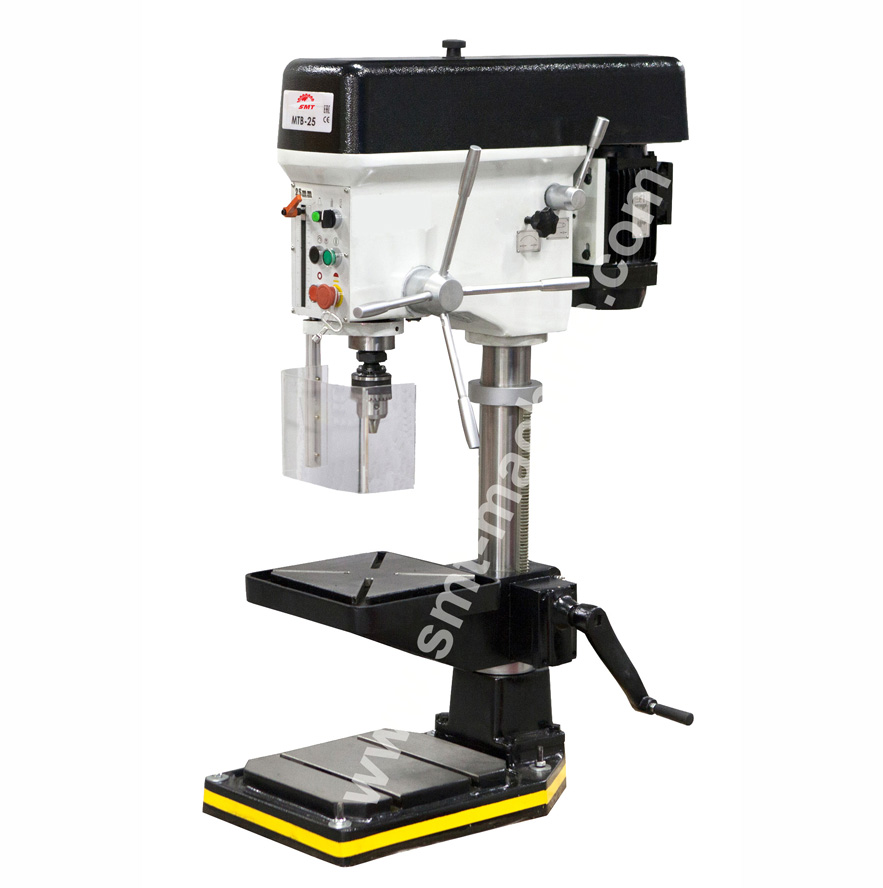

MTB 25
· Heavy duty belt drive column drilling machine for workshop
· Belt drill head with very quite operation
· Adjustable drill depth stop with scale,reading at the front
· Working table rotate 360° and swivels ±45°
· Rigid constructuion of table and base with coolant tank
· Main Schneider electrical components provide quality
· 24V controlling wiring
· Equip with safety spindle guard, LED work lamp
MESSAGE
Model   No.MTB 25MTB 25 Vario
Drilling capacity25mm25mm
Tapping capacityM16M16
Table capacity50kg50kg
Spindle taperMT3MT3
Spindle speeds320-1820rpm/5100~620/620~3300rpm
Spindle feed~~
Dsitance spindle to column240mm240mm
Dsitance spindle to tabel360mm360mm
Dsitance spindle to base680mm680mm
Spindle stroke135mm135mm
Column diameter85mm85mm
Table size250×250mm250×250mm
T-slot of table14mm14mm
Working surface of base365×305mm365×305mm
T-slot of base14mm14mm
Net weigh195kg195kg
Gross weight225kg225kg
Feeding motor~~
Coolant pump~~
Main motor1.1kw1.1kw
Dimension of machine600x950x1300mm600x950x1300mm
Packing size630×990x1400mm630×990x1400mm
Standard accessoriesOptional accessories
LED work lampCoolant system
Tapping functionKeyless drill chuck
Spindle coverBSM 150 vice
Drill chuckTQ 100 vice
Arbor58pcs clamping kits
Tools
