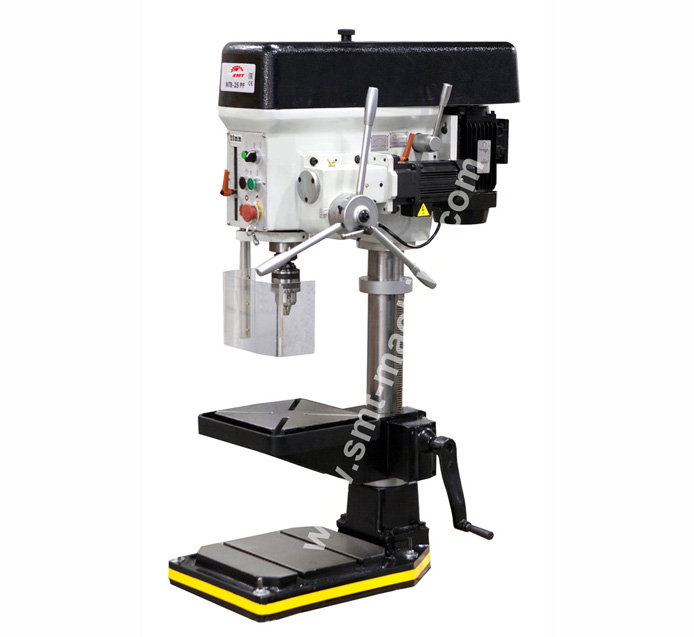

MTB 25 PF
· Heavy duty belt drive column drilling machine for workshop
· Belt drill head with very quite operation
· Adjustable drill depth stop with scale,reading at the front
· Working table rotate 360° and swivels ±45°
· Variable automatic spindle feed by brushless motor
· Rigid constructuion of table and base with coolant tank
· Main Schneider electrical components provide quality
· 24V controlling wiring
· Equip with safety spindle guard, LED work lamp
MESSAGE
Model   No.MTB 25 PF
Drilling capacity25mm
Tapping capacityM16
Table capacity50kg
Spindle taperMT3
Spindle speeds320-1820rpm/5
Spindle feed0-110mm/min
Dsitance spindle to column240mm
Dsitance spindle to tabel360mm
Dsitance spindle to base680mm
Spindle stroke135mm
Column diameter85mm
Table size250×250mm
T-slot of table14mm
Working surface of base365×305mm
T-slot of base14mm
Net weigh195kg
Gross weight225kg
Feeding motor0.75kw
Coolant pump~
Main motor1.1kw
Dimension of machine600x950x1300mm
Packing size630×990x1400mm
Standard accessoriesOptional accessories
Automatic spindle feedCoolant system
LED work lampKeyless drill chuck
Tapping functionBSM 150 vice
Spindle coverTQ 100 vice
Drill chuck58pcs clamping kits
Arbor
Tools
