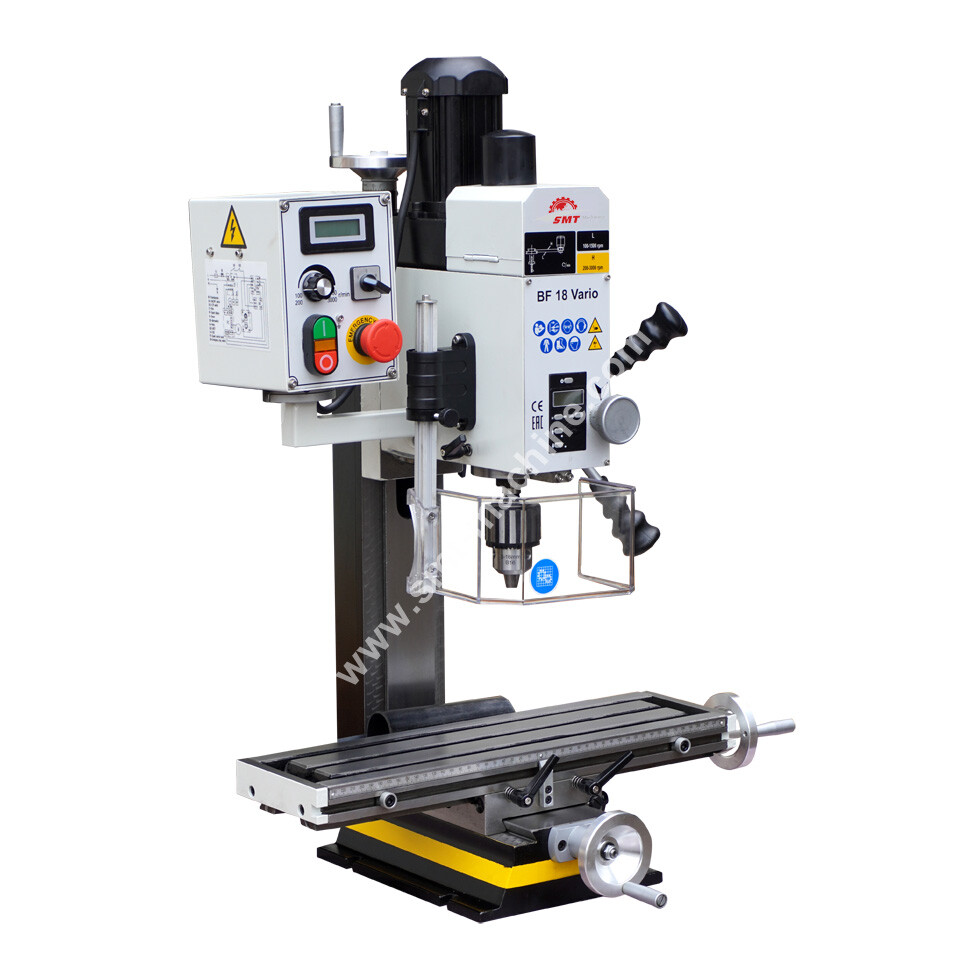

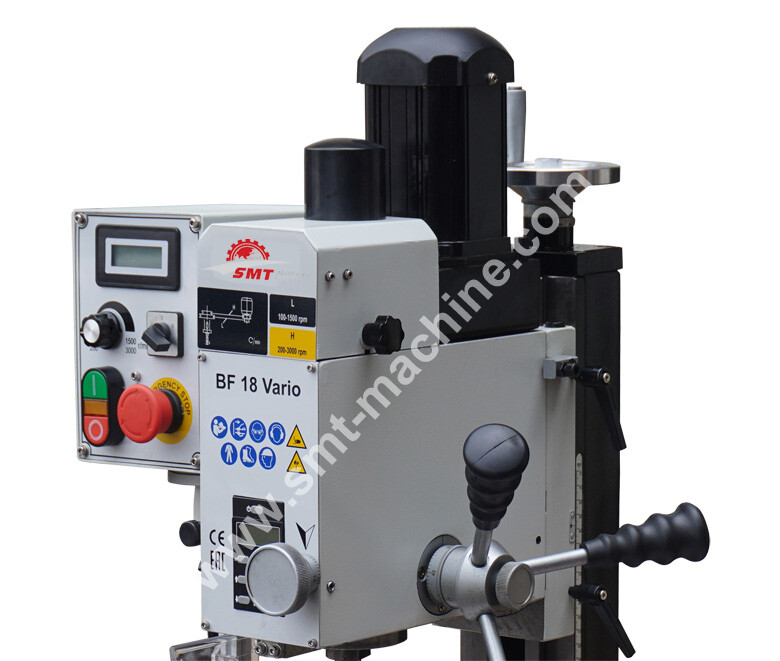

BF 18 Vario
Feature:
· Brushless motor drive variable speed drilling&milling machine
· Two steps of speeds is dispalyed directly on the control panel
· Large square column casting ensures maximum rigidity
· Handwheel for quill micro down feed
· Depth ruler easy to read for quil travel at front panel
· Quality casting iron of large base for high rigidity
· High quality belt for quiet operation and long life
· R/F switch and separate emergency switch
· CE standard electrical units
MESSAGE
ModelBF 18 Vario
Drilling   Capacity18mm
Spindle TaperMT2
Spindle Stroke50mm
Head Tilt±90º
Number of   Spindle SpeedsVariable
Ranger of   Spindle Speeds100-1500/200-3000rpm
Working   Surface of Table500x140mm
Max. Table   longitudinal Travel360mm
Max. Table   Cross Travel140mm
Max. vertical   travel200mm
Number of   T-Slots3
T-Slot Size10mm
Motor750w
Net Wet65kg
Gross Weight75kg
Overall   Dimension500x450x760mm
Packing size620x560x840mm
Standard accessoriesOptional accessories
Speed readoutKeyless drill chuck
Depth rulerStand & chip tray
Safety spindle coverDeluxe stand with drawer
Drill chuck3-axis digital readout
Drawbar58pcs clamping kits
ArborER25 collets chuck set
ToolsBSM-80mm drilling vise

QG-100mm milling vise
