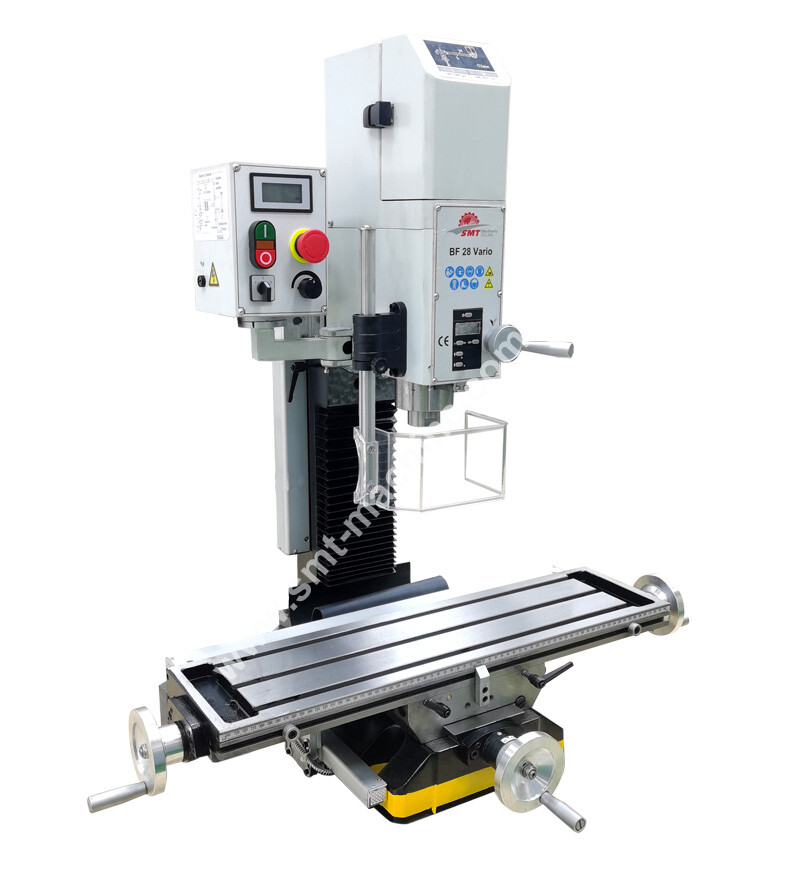

BF 28 Vario
Feature:
· Brushless motor drive variable speed drilling&milling machine
· Precision spindle supported on taper roller bearings
· Dovetail column ensures positive head location
· Depth ruler easy to read at front panel as standard
· Easy to operate switches on controlling panel
· Quality casting iron of large base for high rigidity
· Two step of belt keep torque at lowest speed
· High quality belt for quiet operation and long life
· Handwheel for quill micro down feed
· Equip with safety spindle guard
· CE standard electrical units
MESSAGE
ModelBF 28 Vario
Drilling   Capacity28mm
Spindle TaperMT3
Spindle Stroke50mm
Head Tilt±90º
Number of   Spindle SpeedsVariable
Ranger of   Spindle Speeds100-1500/200-3000rpm
Work Table700x180mm
Longitudinal   travel520mm
Cross travel180mm
Vertical   travel240mm
Number of   T-Slots3
T-Slot Size12mm
Motor750w
Net Wet125kg
Gross Weight145kg
Overall   Dimension970x610x950mm
Packing size760x720x880mm
Standard accessoriesOptional accessories
Speed readoutKeyless drill chuck
Depth ruler58pcs clamping kits
Safety spindle coverER25 collets chuck set
Drill chuckBSM 85 drilling vise
DrawbarQG 4" milling vise
ArborStand & chip tray
ToolsDeluxe stand with drawer

3-axis digital readout
