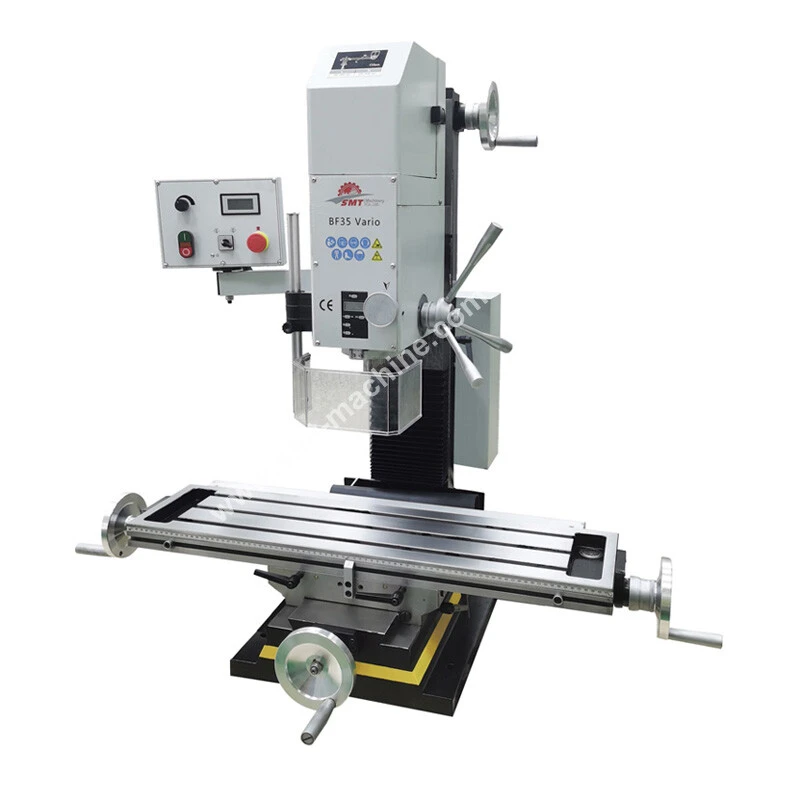

BF 35 Vario
Feature:
· Brushless motor drive variable speed drilling&milling machine
· Precision spindle supported on taper roller bearings
· Dovetail column ensures positive head location
· Depth ruler easy to read at front panel as standard
· Easy to operate switches on controlling panel
· Quality casting iron of large base for high rigidity
· Two step of belt keep torque at lowest speed
· High quality belt for quiet operation and long life
· Handwheel for quill micro down feed
· Equip with safety spindle guard
· CE standard electrical units
MESSAGE
ModelBF 35 Vario
Drilling Capacity30mm
Spindle TaperMT3
Spindle Stroke70mm
Head Tilt±90º
Number of Spindle SpeedsVariable
Ranger of Spindle Speeds100-1500/200-3000rpm
Work table840x210mm
Longitudinal travel540mm
Cross travel220mm
Vertical travel370mm
Number of T-Slots3
T-Slot Size14mm
Motor1.5kw
Net Wet220kg
Gross Weight260kg
Overall Dimension1170x840x1200mm
Packing size1000x760x1100mm
Standard accessoriesOptional accessories
Speed readoutKeyless drill chuck
Depth ruler58pcs clamping kits
Safety spindle coverER25 collets chuck set
Drill chuckBSM 120 drilling vise
DrawbarQG 6" milling vise
ArborStand & chip tray
ToolsDeluxe stand with drawer

3-axis digital readout
