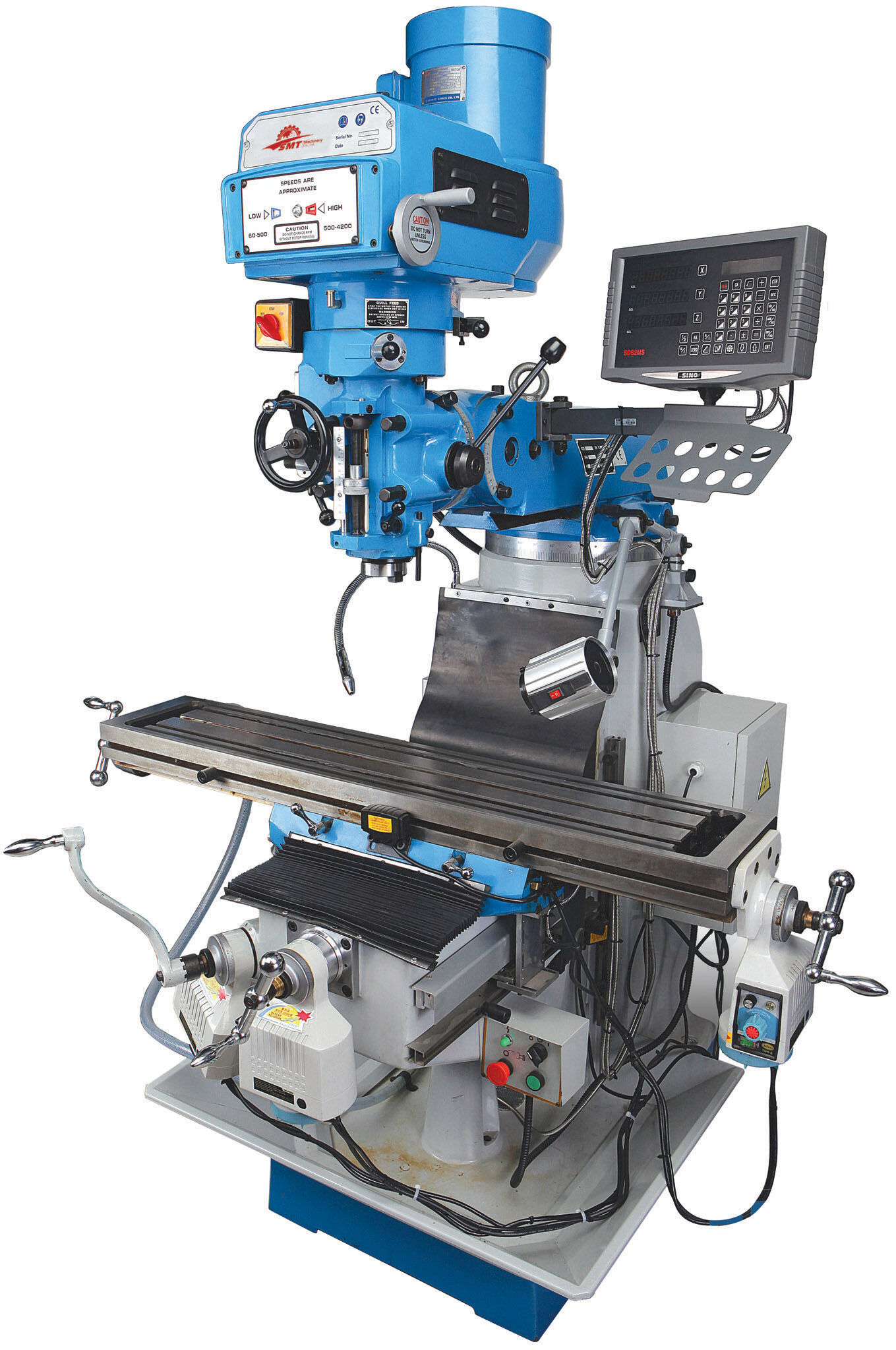

MTF 250
Features:
Steplessly adjustable spindle speed with mechanic spindle brake
Universal mill head can be turned,tilted and swivelled
Hardened and ground guide ways in all axis
Central lubrication system to slideways and leadscrews
MESSAGE


ModelMTF 250
Table size1370×254 mm
Spindle taperISO 40
Spindle speed stepless65-4500 rpm
Spindle feed0.04/0.08/0.15 mm/rev.
Spindle stroke127 mm
Longitudinal travel950 mm
Cross travel400 mm
Travel vertical420 mm
Distance spindle to column155-680 mm
Head tilting range-90° to +90°
Mill head tilting range-45° to +45°
Distance spindle to table0-405 mm
T-slot size16 mm
Net weight1400 KG
Gross weight1600 KG
Motor power3.75KW
Voltage400 V
Ampere9.3 A
Diamesion of machine
Loading Qty 20"/40" CTN


Standard   accessriesOptinal accessories
DrawbarX/Y/Z-axis power feed
ArborAir drawbar system
Coolant systemDigital readout
Halogen lightElectronic lubrication pump
Chip tray
