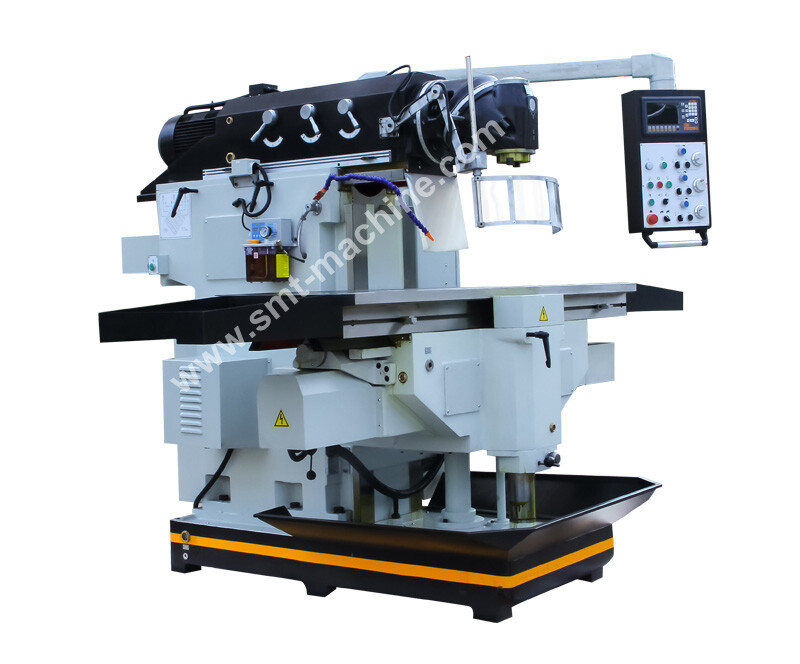

MUF 2000 Servo
Features:
Three powerful servo motors for X/Y/Z axis
Ball leadscrew for X/Y/Z axis
Stepless feed setting for X/Y/Z axis
Large dovetail guinding way in X axis
Rectangular guiding way in Y/Z axis
MESSAGE
Model No.MUF 1200 ServoMUF 1600 ServoMUF 2000 Servo
Table size1235×500mm1600×500mm2000×500mm
T-slot5-18mm-80mm5-18mm-80mm5-18mm-80mm
Spindle taperISO40ISO50ISO50
Spindle speeds30-2050rpm(27)30-2050rpm(27)30-2050rpm(27)
Travel(X/Y/Z)900/650/400mm1200/700/500mm1400/700/500mm
Distance spindle to column20-670mm28-728mm28-728mm
Distance spindle to table35-485mm50-550mm50-550mm
Feeding rate(X/Y)10-1000mm/min10-1000mm/min10-1000mm/min
Rapid feed(X/Y)2500mm/min2200mm/min1100mm/min
Vertical feeding rate(Z)5-500mm/min5-500mm/min5-500mm/min
Rapid feed(Z)1500mm/min1100mm/min1100mm/min
Max. workpiece weight1800kg1800kg1800kg
Net weight3900kg4200kg4700kg
Gross weight4200kg4500kg5000kg
Motor power5.5kw7.5kw7.5kw
Packing size2400×2000×2250mm2600×2250×2250mm2600×2250×2250mm
Standard accessriesOptional accessories
Spindle safety cover3-axis digital readout

Work lamp58pcs clamping kits

Coolant system


Central lubrication


Ball leadscrew for all axis


Tools
