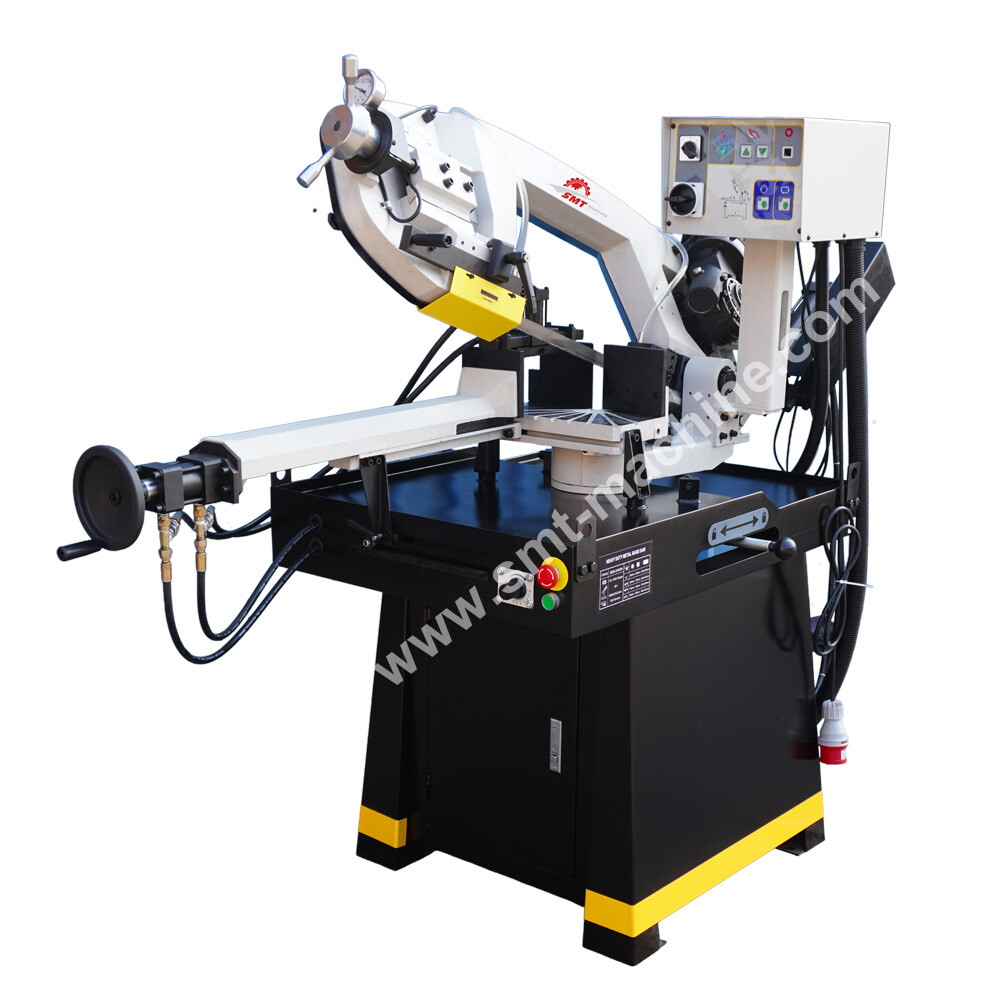

BS-250 GH
Feature:
· The semi-automatic quality saw for professional user
· Worm gear drive provide high torque
· Cutting angle settings 0° - 60°
· Workpiece fence for economic work
· Copper brush to clear the chips
· Automatic shut-down at cutting end
· Guage for blade tension as standard
· Adjustable hydraulic cylinder for pressure regulation of the saw frame
· Relocatable vise is clamping by hydraulic
· The cutting groove in the table of vise protect it no damage when cutting angles
· The semi-automatic function increases production efficiency suitalbe for mass production
· Precise and stable saw blade guides ensure high angular accuracy
· Equipped with coolant system, stand
· BS-250 GH Vario drive by worm gear and inverter.
MESSAGE
ModelBS-250 GHBS-250 GH Vario
Cutting capacity round 0°250mm250mm
Cutting capacity flat 0°320x195mm320x195mm
Cutting capacity round 45° R190mm190mm
Cutting capacity flat 45° R200x140mm200x140mm
Cutting capacity flat 60° R130mm130mm
Cutting capacity round 60° R130x125mm130x125mm
Cutting capacity round 45° L190mm190mm
Cutting capacity flat 45° L180x140mm180x140mm
Working height965mm965mm
Sawing angle-45°~+60°-45°~+60°
Cutting speed37.5/75m/min5~90m/min
Bandsaw blade dimension2680x27x0.9mm2680x27x0.9mm
Main drive structureWorm driveWorm drive
Vise clampingHydraulicHydraulic
Blade tensionManualManual
Band saw blade cleaning methodbrushbrush
Motor power1.5/1.1kw1.5kw
Coolant pump45w45w
Coolant15.6L15.6L
Net weight331kg331kg
Gross weight394kg394kg
Machine dimension1820x870x1490mm1820x870x1490mm
Packing size1820x760x1000mm1820x760x1000mm
Standard accessories:Optional accessories:
Saw bladeRoller stand
Workpiece fence

Gauge for blade tension

Hydraulic cylinder

Coolant system

Stand
