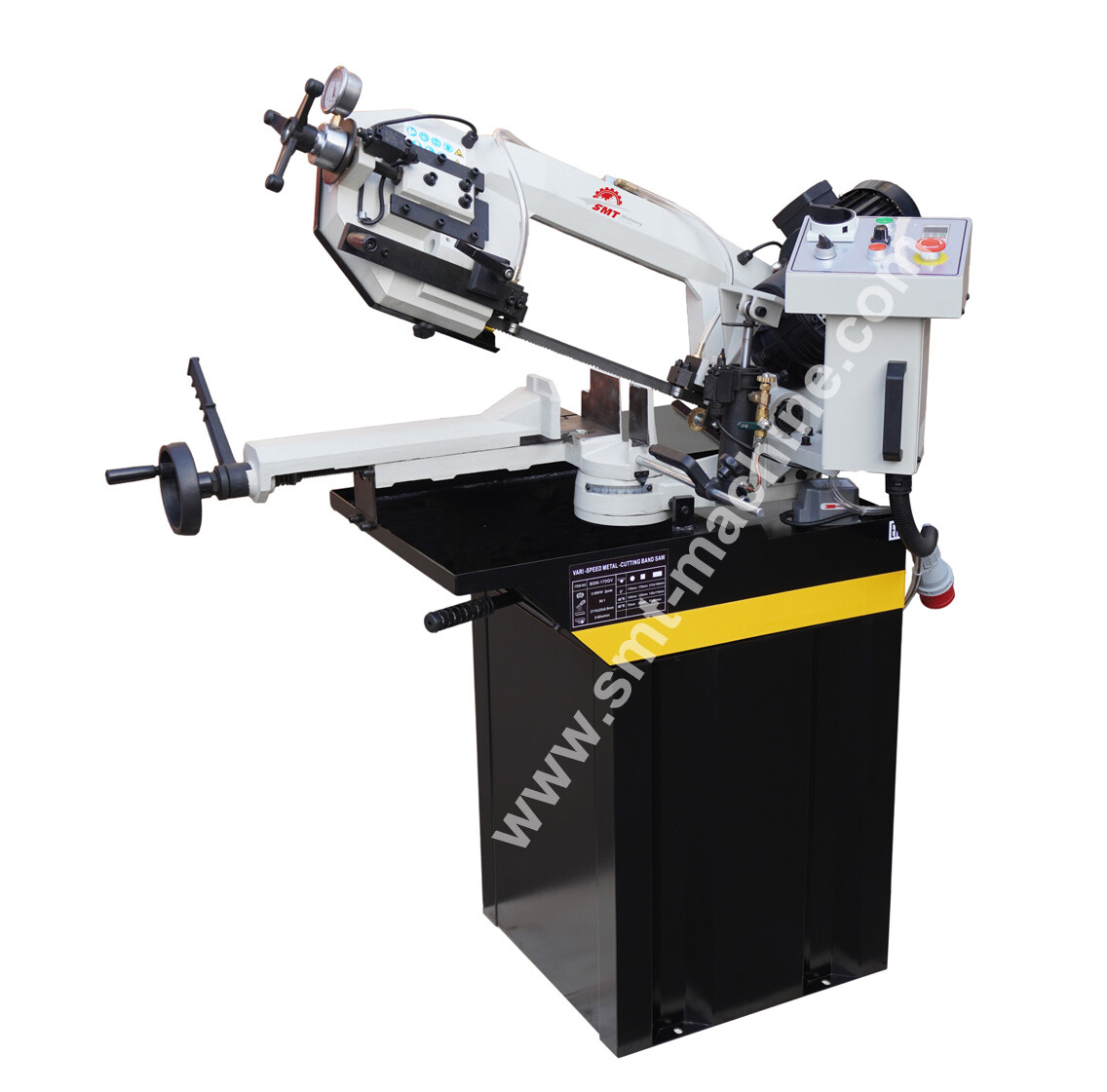

BS-170G
Feature:
· The mitre saw is a compact and quality saw for repair work shop
· Worm gear drive provide high torque
· Cutting angle settings 0° - 60°
· Workpiece fence for economic work
· Copper brush to clear the chips
· Automatic shut-down at cutting end
· Guage for blade tension as standard
· Hydraulic cylinder for saw body to cut automaticly
· Precise and stable saw blade guides ensure high angular accuracy
· Equipped with coolant system, stand
MESSAGE
ModelBS-170GBS-170G Vario
Cutting capacity round 0°170mm170mm
Cutting capacity flat 0°170x210mm170x210mm
Cutting capacity round 30°150mm150mm
Cutting capacity flat 30°140x140mm140x140mm
Cutting capacity round 45°130mm130mm
Cutting capacity flat 45°110x110mm110x110mm
Cutting capacity flat 60°70mm70mm
Cutting capacity round 60°60x60mm60x60mm
Working height980mm980mm
Sawing angle0°~60°0°~60°
Cutting speed32.5/65m/min5-90m/min
Bandsaw blade dimension2110x20x0.9mm2110x20x0.9mm
Main drive structureWorm driveWorm drive
Vise clampingManualManual
Blade tensionManualManual
Band saw   blade cleaning methodbrushbrush
Motor power0.75/0.95kw0.95kw
Coolant pump45w45w
Coolant12L12L
Net weight141kg141kg
Gross weight168kg168kg
Machine dimension1250x650x1340mm1250x650x1340mm
Packing size1150x560x930mm1150x560x930mm
Standard accessories:Optional accessories:
Saw bladeRoller stand
Workpiece fence

Gauge for blade tension

Hydraulic cylinder

Coolant system

Stand
