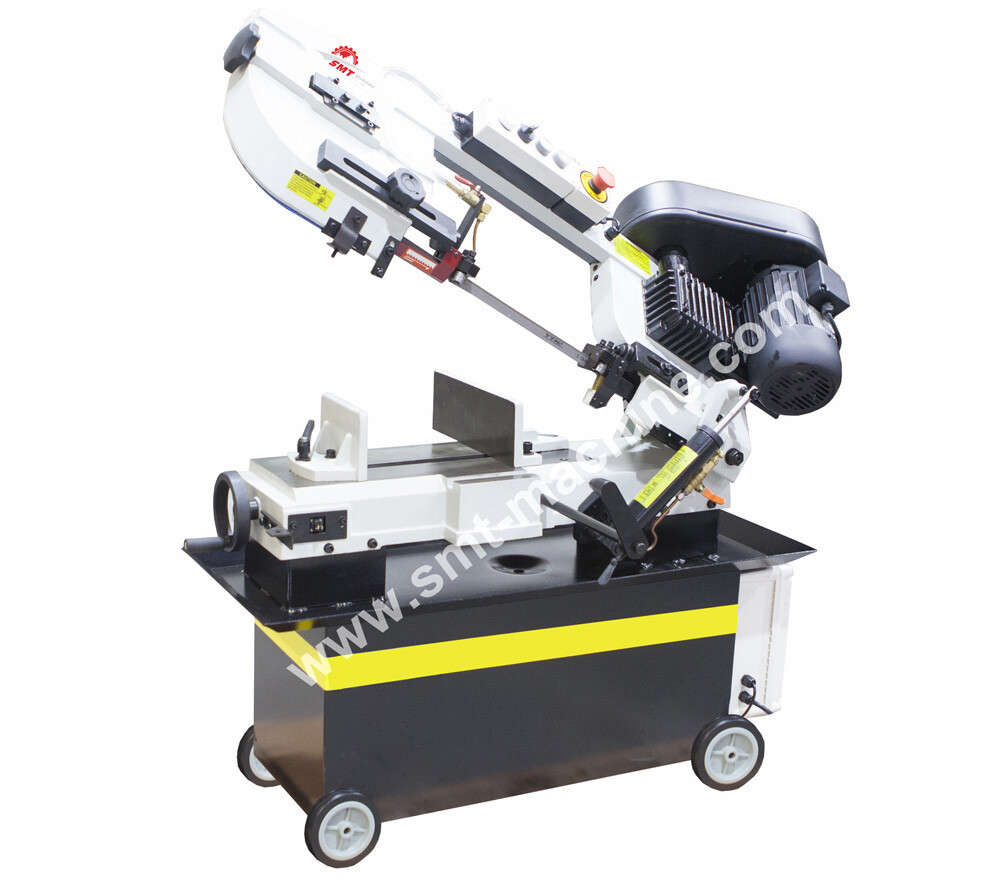

BS-180
Feature:
· The saw is a compact and quality type for DRY and professional user
· Four speed setting via belt change
· Quick clamping vice adjustable for mitre cutting up to 45°
· Workpiece fence for economic work
· Copper brush to clear the chips
· Automatic shut-down at cutting end
· Cutting pressure adjustable via valve
· Precise and stable saw blade guides ensure high angular accuracy
· CE electrical box and 24 control wiring
· Equipped with coolant system, stand
MESSAGE
ModelBS-180
Cutting capacity round 0°180mm
Cutting capacity flat 0°180x300mm
Cutting capacity round 45°127mm
Cutting capacity flat 45°120x110mm
Working height550mm
Vice angle0°~45°
Cutting speed22/34/49/64m/min
Bandsaw blade dimension2360x19x0.9mm
Main drive structureBelt
Vise clampingManual
Blade tensionManual
Band saw blade cleaning methodbrush
Motor power0.75kw
Coolant pump25w
Coolant9L
Net weight140kg
Gross weight180kg
Machine dimension1220x405x1015mm
Packing size1250x510x1140mm
Standard accessories:Optional accessories:
Saw bladeRoller stand
Workpiece fence
Hydraulic cylinder
Coolant system
Stand
