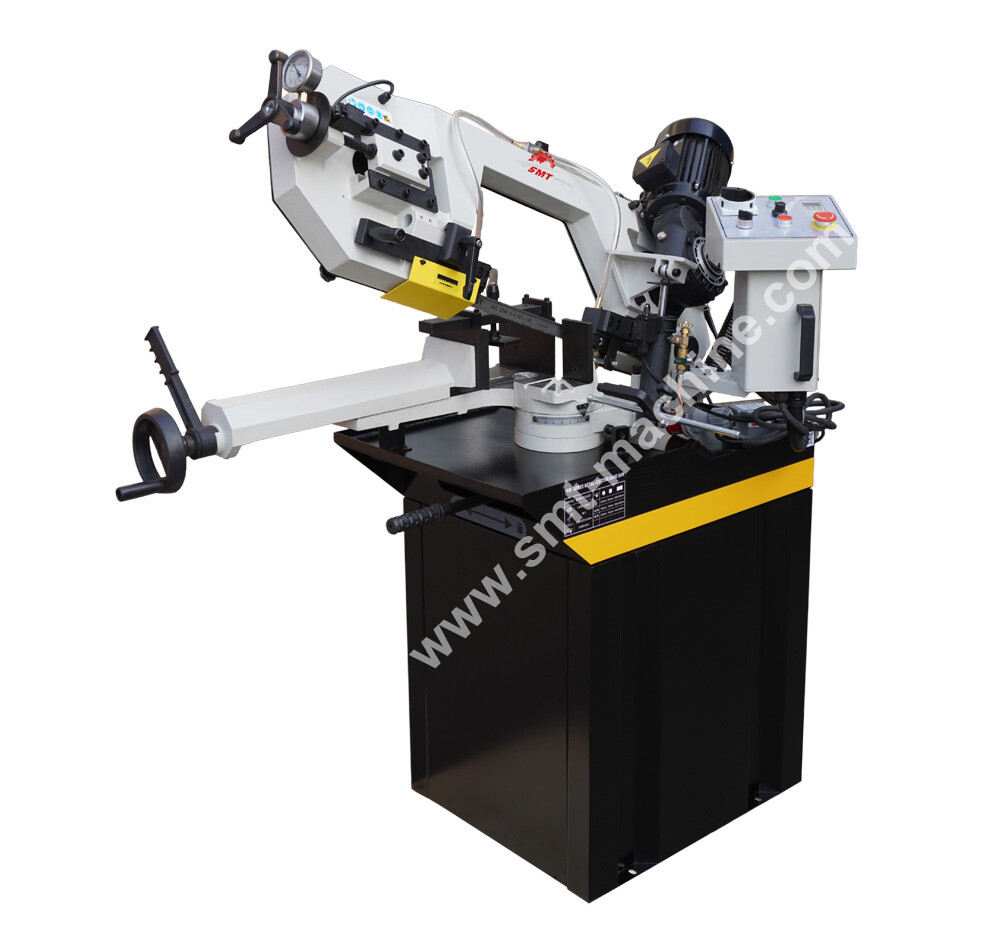

BS-220G
Feature:
· The mitre saw is a compact and quality saw for repair work shop
· Worm gear drive provide high torque
· Cutting angle settings 0° - 60°
· Workpiece fence for economic work
· Copper brush to clear the chips
· Automatic shut-down at cutting end
· Guage for blade tension as standard
· Hydraulic cylinder for saw body to cut automaticly
· Precise and stable saw blade guides ensure high angular accuracy
· Equipped with coolant system, stand
· BS-220G Vario is driven by inverter
MESSAGE
ModelBS-220GBS-220G Vario
Cutting capacity round 0°220mm220mm
Cutting capacity flat 0°260x140mm260x140mm
Cutting capacity round 30°190mm190mm
Cutting capacity flat 30°200x140mm200x140mm
Cutting capacity round 45°160mm160mm
Cutting capacity flat 45°160x140mm160x140mm
Cutting capacity flat 60°100mm100mm
Cutting capacity round 60°120x100mm120x100mm
Working height920mm920mm
Sawing angle0°~60°0°~60°
Cutting speed37.5/75m/min5-90m/min
Bandsaw blade dimension2450x27x0.9mm2450x27x0.9mm
Main drive structureWorm driveWorm drive
Vise clampingManualManual
Blade tensionManualManual
Band saw blade cleaning methodbrushbrush
Motor power1.5/1.1kw1.5kw
Coolant pump45w45w
Coolant15.2L15.2L
Net weight218kg218kg
Gross weight268kg268kg
Machine dimension1250x710x1490mm1250x710x1490mm
Packing size1320x760x950mm1320x760x950mm
Standard accessories:Optional accessories:
Saw bladeRoller stand
Workpiece fence

Gauge for blade tension

Hydraulic cylinder

Coolant system

Stand
