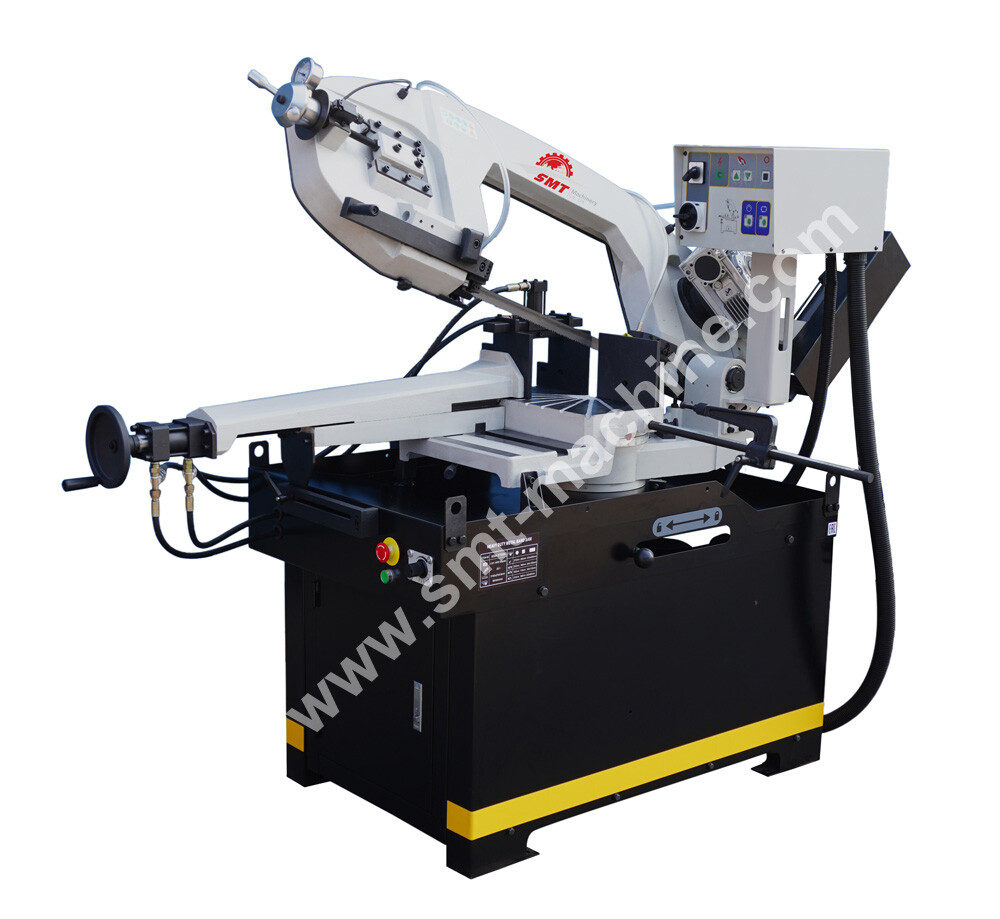

BS-270 GH
Feature:
· The semi-automatic quality saw for professional user
· Worm gear drive provide high torque
· Cutting angle settings 0° - 60°
· Workpiece fence for economic work
· Copper brush to clear the chips
· Automatic shut-down at cutting end
· Guage for blade tension as standard
· Adjustable hydraulic cylinder for pressure regulation of the saw frame
· Relocatable vise is clamping by hydraulic
· The cutting groove in the table of vise protect it no damage when cutting angles
· The semi-automatic function increases production efficiency suitalbe for mass production
· Precise and stable saw blade guides ensure high angular accuracy
· Equipped with coolant system, stand
· BS-270 GH Vario drive by worm gear and inverter
MESSAGE
ModelBS-270 GHBS-270 GH Vario
Cutting capacity round 0°270mm270mm
Cutting capacity flat 0°370x220mm370x220mm
Cutting capacity round 45° R240mm240mm
Cutting capacity flat 45° R200x160mm200x160mm
Cutting capacity flat 60° R160mm160mm
Cutting capacity round 60° R160x110mm160x110mm
Cutting capacity round 45° L210mm210mm
Cutting capacity flat 45° L220x80mm220x80mm
Working height920mm920mm
Sawing angle-45°~+60°-45°~+60°
Cutting speed34/68m/min5~90m/min
Bandsaw blade dimension3160x27x0.9mm3160x27x0.9mm
Main drive structureWorm driveWorm drive
Vise clampingHydraulicHydraulic
Blade tensionManualManual
Band saw blade cleaning methodbrushbrush
Motor power1.5/1.1kw1.5/1.1kw
Coolant pump45w45w
Coolant17L17L
Net weight490kg490kg
Gross weight541kg541kg
Machine dimension

Packing size1900x765x1160mm1900x765x1160mm
Standard accessories:Optional accessories:
Saw bladeRoller stand
Workpiece fence

Gauge for blade tension

Hydraulic cylinder

Coolant system

Stand
