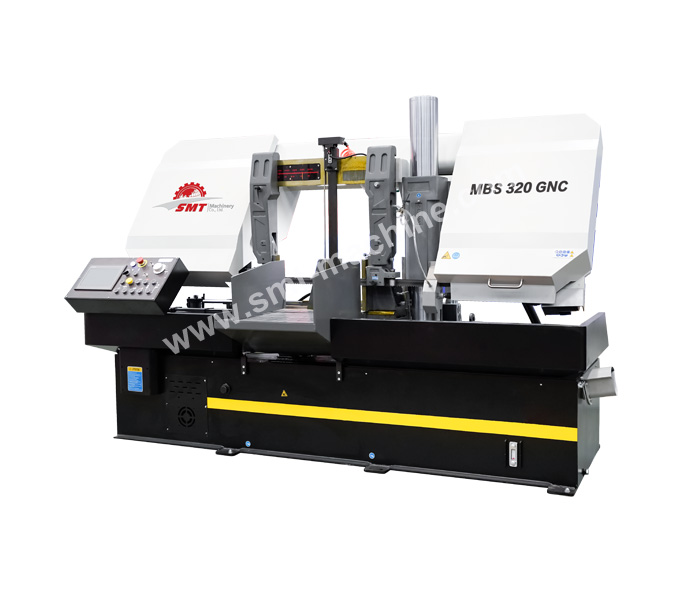

MBS 320 ~ 530 GNC
Feature:
· The whole cutting process is done without operator's interference
· Variable cutting speed via inverter
· Worm gear drive provide high torque
· Hydraulic workpiece clamping
· Touchscreen LCD control panel
· Precise and stable saw band guides ensure high angular accuracy
· Top clamp for batch production
· Hydraulic control of arm motion (up and down)
· Easy to operate from control panel on front of machine
· Equip with LED work lamp, coolant system, chip conveyor
MESSAGE
Model No.MBS 320 GNCMBS 420 GNCMBS 530 GNC
Cutting   capacity round 0° 320mm 420mm 530mm
Cutting   capacity square 0°320x320mm420x420mm530x530mm
Feed per   single stoke500mm500mm500mm
Max.   workpiece2000kg3000kg4500kg
Table height780mm780mm780mm
Cutting speed20-80m/min20-80m/min20-80m/min
Bandsaw blade dimension4115x34x1.1mm5150x41x1.3mm6200x41x1.3mm
Coolant pump0.09kw0.135kw0.09kw
Hydraulic pump1.1kw1.1kw1.1kw
Main motor5.0kw7.5kw7.5kw
Main drive   structureGearboxGearboxGearbox
Capacity of   coolant tank75L120L140L
Capacity of   hydraulic oil tank40L70L70L
Vise clampingHydraulicHydraulicHydraulic
Blade tensionHydraulicHydraulicHydraulic
Band saw   blade cleaning methodPowered brushPowered brushPowered brush
Weight1700kg2500kg3300kg
Packing size2250x2300x1550mm2250x2630x1650mm2250x3100x1950mm
Standard accessories:Optional accessories:

Bi-metal saw bladeRoller stand

LED work lamp


Coolant system


Chip conveyor


Top clamp


NC control with touch screen
