D 330×1000 Pro
Feature:
· Precision gear drive bench lathe for workshop
· 1.8kw powerful AC motor for middle heavy working
· Double vee bedway hardened and precision ground
· Separate leadscrew for thread cutting
· Dedicated feed shaft for longitudinal and cross feed

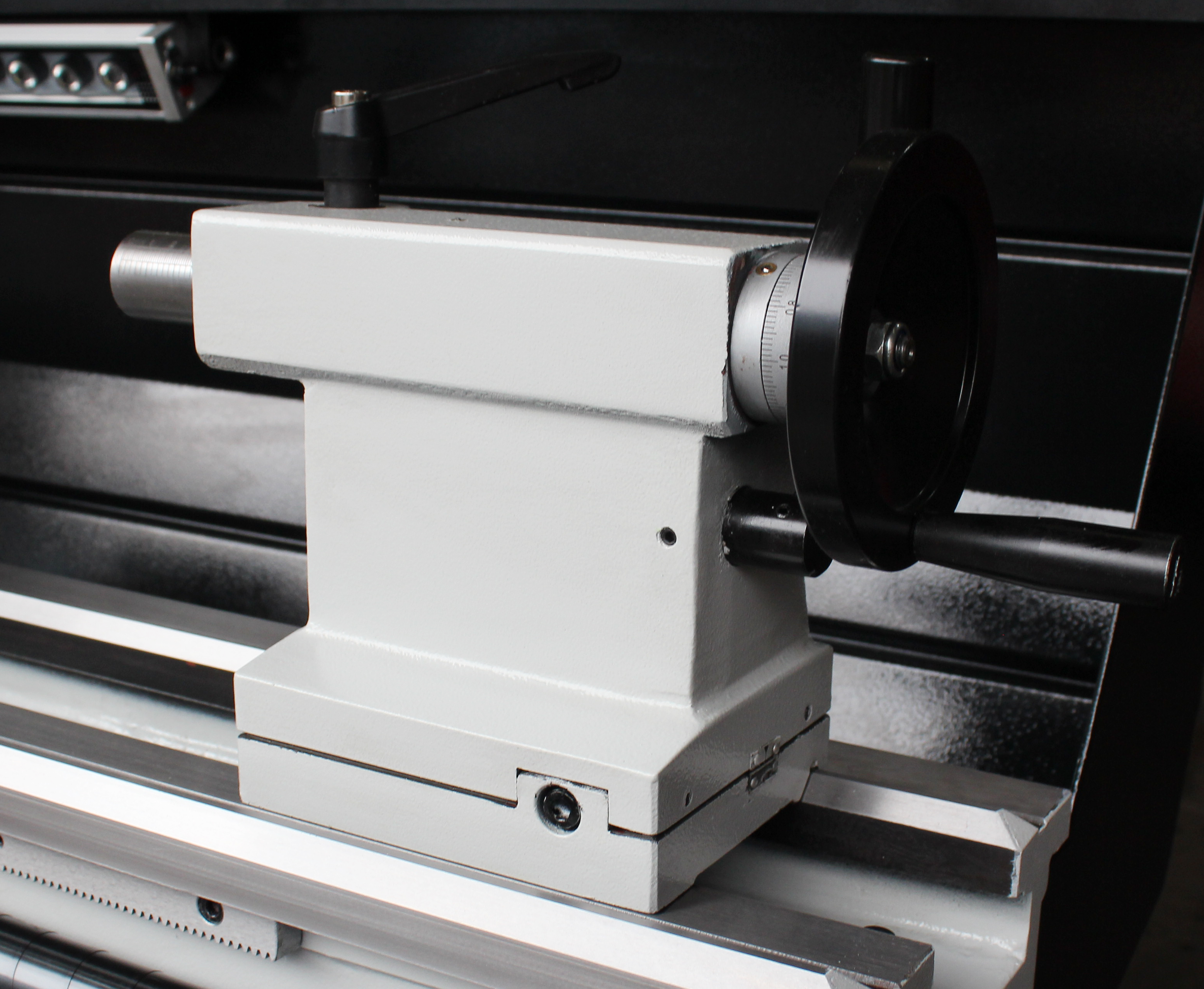

· Quick locking tailstock
· Operating lever for forward and reverse

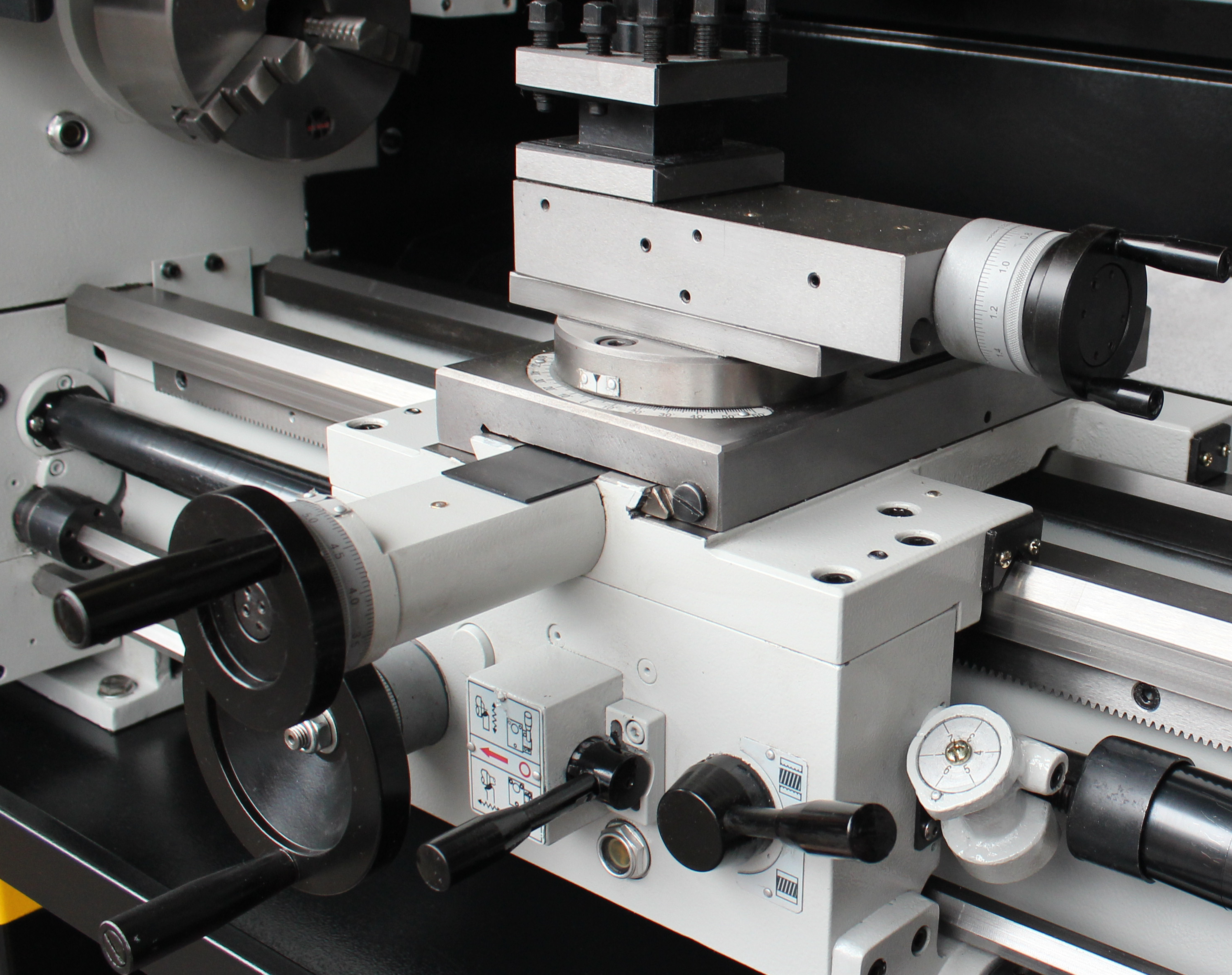

· Taper gibs on cross slide and top slide gets solid rigidity

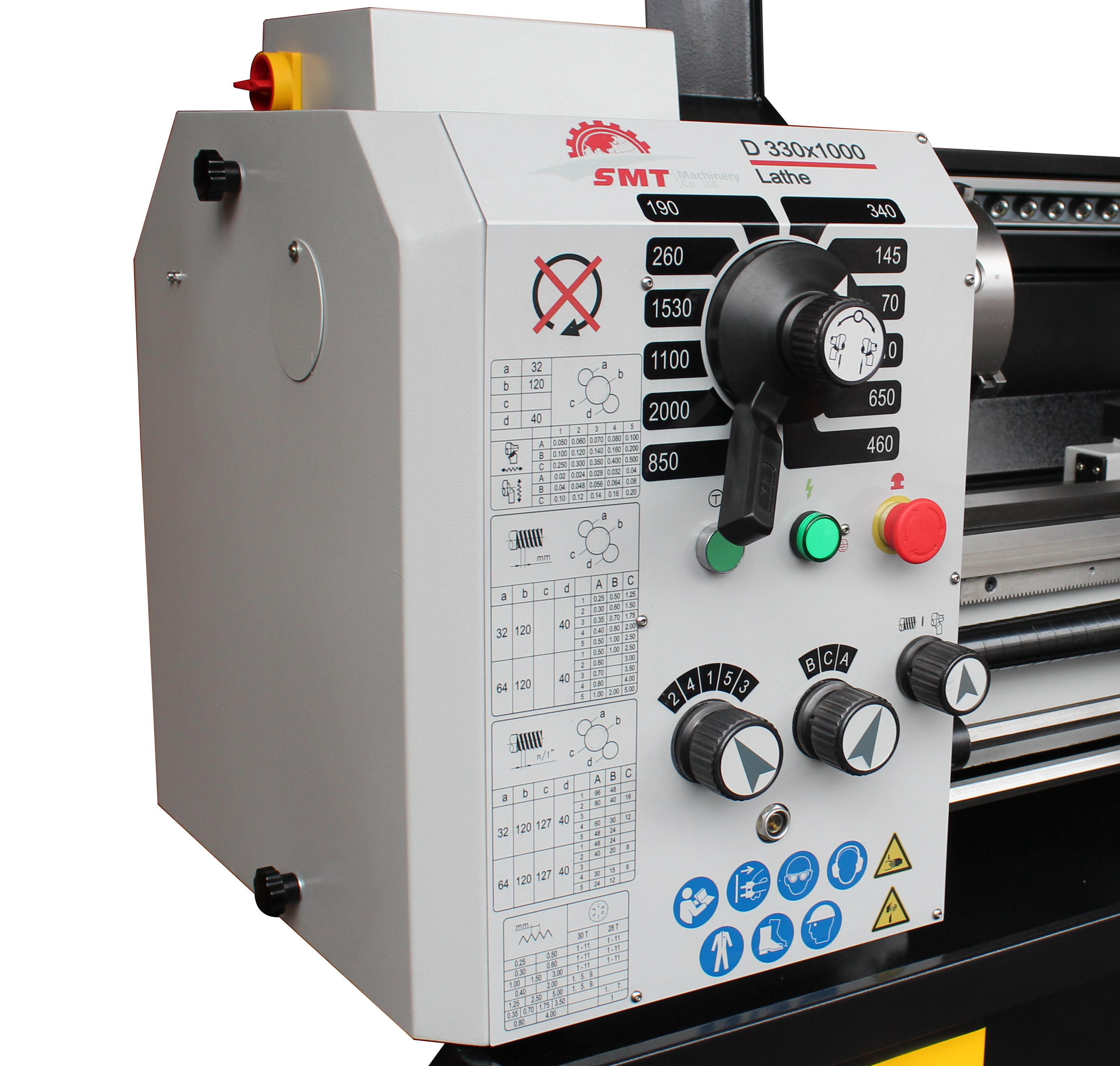

· Super design of gearbox gets normal threads no changing gears
· 120/127T change gear for getting accuracy imperial threads
· 195mm width of bed gets very strong rigidity
· 24V controlling wiring
· Equip with all safety covers for CE standard
MESSAGE
Model   No.D330×1000 Pro
Distance between centres1000mm
Swing over bed330mm
Swing over cross slide205mm
Width of bed195mm
Spindle bore taperMT5
Spindle bore38mm
Spindle noseD1-4
Range of spindle speed70-2000rpm/12
Range of longitudinal feeds0.05~0.50mm/r   (15)
Range of cross feeds0.02~0.20mm/r   (15)
Range of inch threads6~96TPI   (13)
Range of metric threads0.25~5.0mm   (18)
Top slide travel95mm
Cross slide travel190mm
Carriage travel775mm
Tailstock quill travel90mm
Diameter of quill32mm
Tailstock quill taperMT3
Max. tool size16x16mm
Net weight479kg
Gross weight550kg
Motor power 1.8kw
Coolant pump40w
Diamesion of machine1730×625×1530mm
Packing size1830×760×1660mm
Standard accessoriesOptional accessories
160mm/D1-4 four jaw chuckQuick change tool post
Follow rest3-axis digital readout
Steady rest
Face plate
Safety spindle cover
Top rest cover
Leadscrew cover
Threading dial
LED work lamp
Micro bed stop
Coolant system
Foot brake
Deluxe stand with drawers
Dead centers
Toolbox & tools
