D 360×1000
Feature:
· Precision gear drive bench lathe for workshop and training purposes
· 1.5kw powerful AC motor for middle heavy working
· 38mm spindle bore with D1-4 spindle nose
· Double vee bedway hardened and precision ground
· Separate leadscrew for thread cutting
· Dedicated feed shaft for longitudinal and cross feed

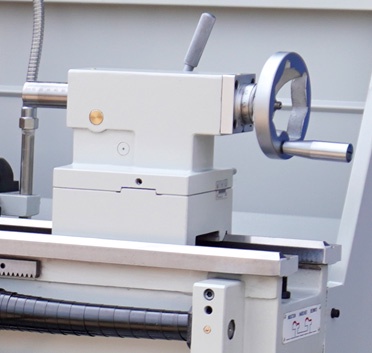

· Quick locking tailstock
· Overload clutch to feed shaft,micro stop is available
· 24V controlling wiring
· Equip with all safety covers, LED lamp, coolant system, foot brake
MESSAGE
Model No.D 360×1000
Distance between centres1000mm
Swing over bed360mm
Swing over cross slide220mm
Width of bed187mm
Spindle bore taperMT5
Spindle bore38mm
Spindle noseD1-4
Range of spindle speed70-2000rpm/8
Range of longitudinal feeds0,052-1.392mm/r
Range of cross feeds0,052-1.392mm/r
Range of inch threads4-56TPI
Range of metric threads0.4-7.0mm
Top slide travel100mm
Cross slide travel170mm
Carriage travel850mm
Tailstock quill travel110mm
Diameter of quill32mm
Tailstock quill taperMT3
Max. tool size16x16mm
Net weight540kg
Gross weight650kg
Pump power0.04kw
Motor power 1.5kw
Dimension of machine1820×725×1320mm
Packing size1750×760×700mm
Standard accessoriesOptional accessories
Four jaw chuck/200mm3-axis digital readout
Follow restProfessional top rest cover with LED work lamp
Steady restElectromagnetic brake
Face plateQuick change tool post
Safety spindle coverTurning tools
Top rest cover
Leadscrew cover
Threading dial
Micro bed stop
LED work lamp
Coolant system
Foot brake
Dead centers
Toolbox & tools
