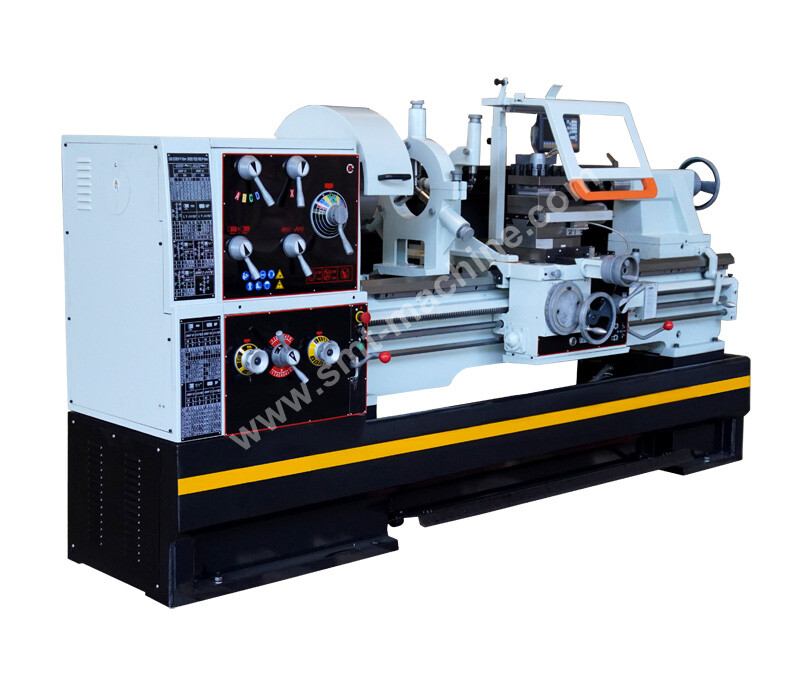

D 660×2000
Feature:
· A modern version of classic lathe with robust construction for industria production
· 7.5kw powerful motor for industrial working
· 105mm spindle bore with D1-8 spindle nose
· Provide to 315mm/D1-8 3 jaw chuck
· Double vee bedway hardened and precision ground
· Separate leadscrew for thread cutting
· Dedicated feed shaft for longitudinal and cross feed
· Central lubrication in bed slide
· X/Y rapid feed
· One piece of casting iron stand for better rigidity

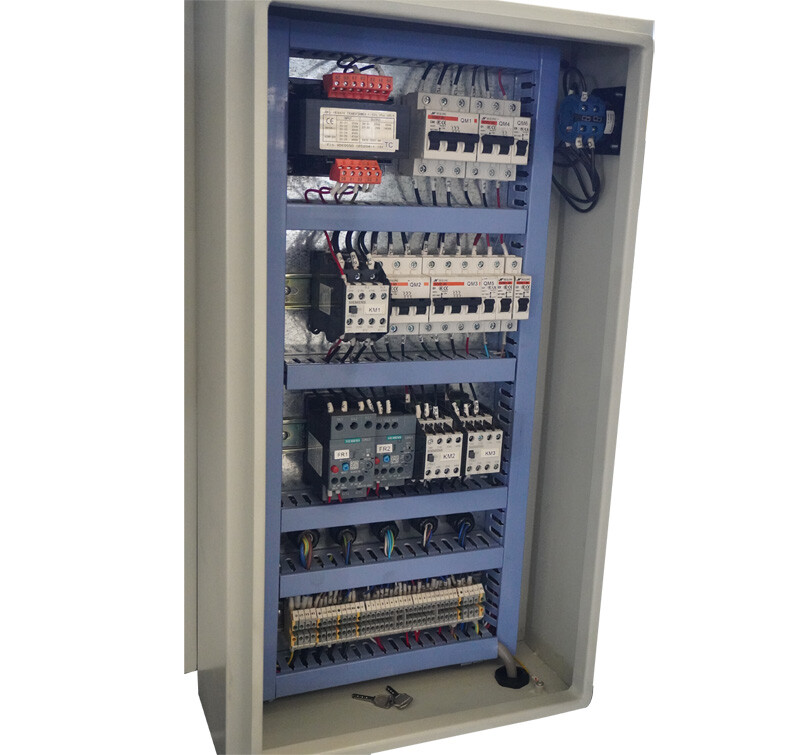

· European CE electrical standard with Siemens contactors
· Equip with safety covers, LED lamp, coolant system, foot brake
MESSAGE
Model No.D 660×1500D 660×2000D 660×3000
Distance between centres1500mm2000mm3000mm
Swing over bed660mm660mm660mm
Swing over cross slide440mm440mm440mm
Swing over gap900mm900mm900mm
Gap length320mm320mm320mm
Width of bed400mm400mm400mm
Spindle bore taper113mm   (1:20)113mm   (1:20)113mm   (1:20)
Spindle bore105mm105mm105mm
Spindle noseD1-8D1-8D1-8
Range of spindle speed25-1600rpm/1625-1600rpm/1625-1600rpm/16
Range of longitudinal feeds0.044-1.48mm/r0.044-1.48mm/r0.044-1.48mm/r
Range of cross feeds0.022-0.74mm/r0.022-0.74mm/r0.022-0.74mm/r
Range of inch threads7/16-80TPI7/16-80TPI7/16-80TPI
Range of metric threads0.45-120mm0.45-120mm0.45-120mm
Range of diametric threads7/8-160DP7/8-160DP7/8-160DP
Range of module threads0.25-60mm0.25-60mm0.25-60mm
Top slide travel230mm230mm230mm
Cross slide travel368mm368mm368mm
Carriage travel1250mm1250mm1250mm
Tailstock quill travel235mm235mm235mm
Diameter of quill90mm90mm90mm
Tailstock quill taperMT5MT5MT5
Max. tool size32x32mm32x32mm32x32mm
Net weight3060kg3345kg3710kg
Gross weight3535kg3835kg4310kg
Pump power0.125kw0.125kw0.125kw
Motor power 7.5kw7.5kw7.5kw
Dimension of machine3200×1230×1600mm3700×1230×1600mm4700×1230×1600mm
Packing size3240×1140×1840mm3740×1140×1840mm4740×1140×1840mm
Standard accessoriesOptional accessories

Four jaw chuck/400mm3-axis digital readout

Follow restQuick change tool post

Steady restProfessional top rest cover

Face plateTaper attachment

Safety spindle coverElectromagnetic brake

Leadscrew coverDriving plate

Threading dialLive centers

Adjustable feed stoppersTurning tools

LED work lamp9.0kw motor

Coolant system


Foot brake


X/Y rapid feed (370w motor)


Dead centers


Toolbox & tools
