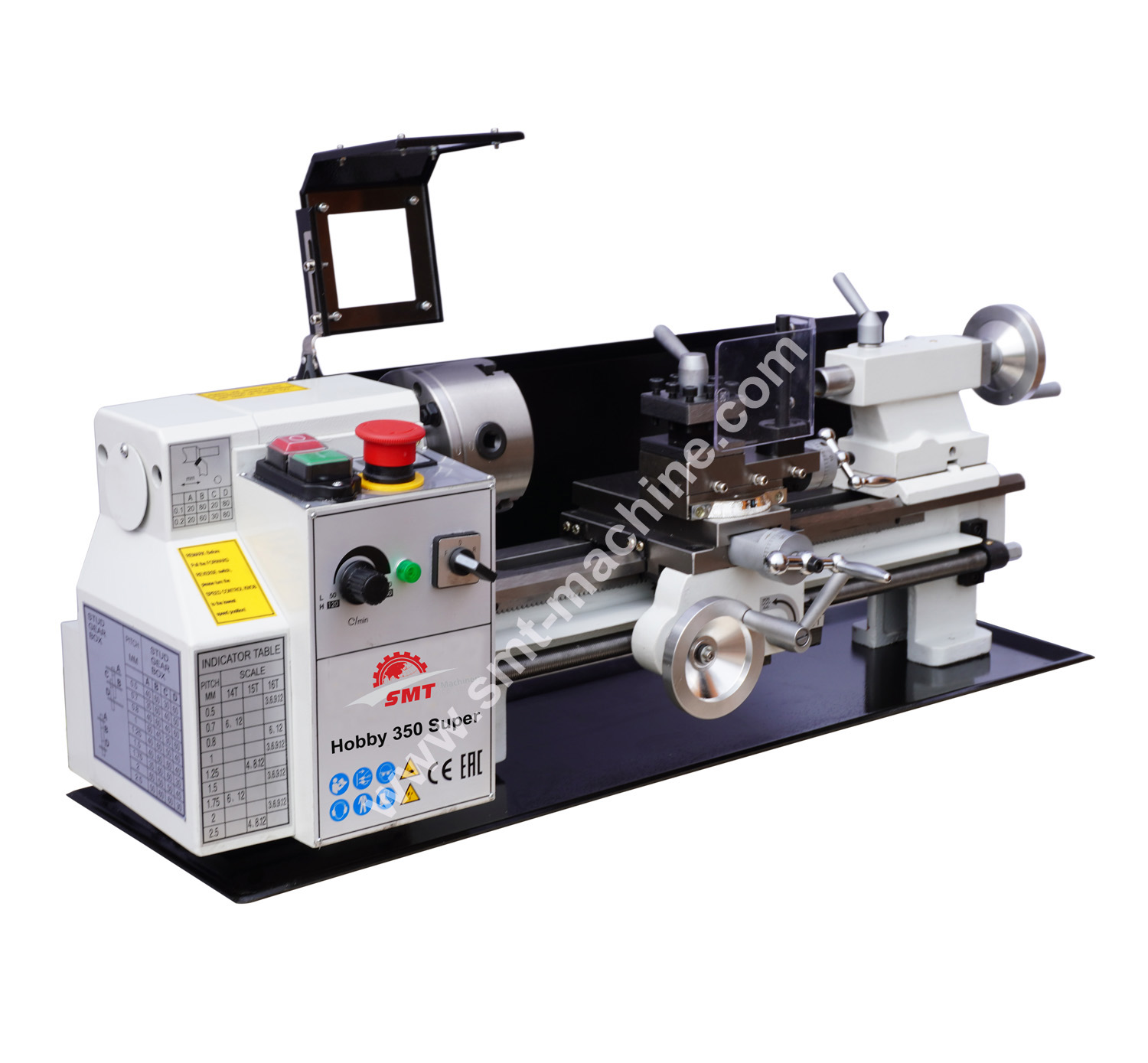

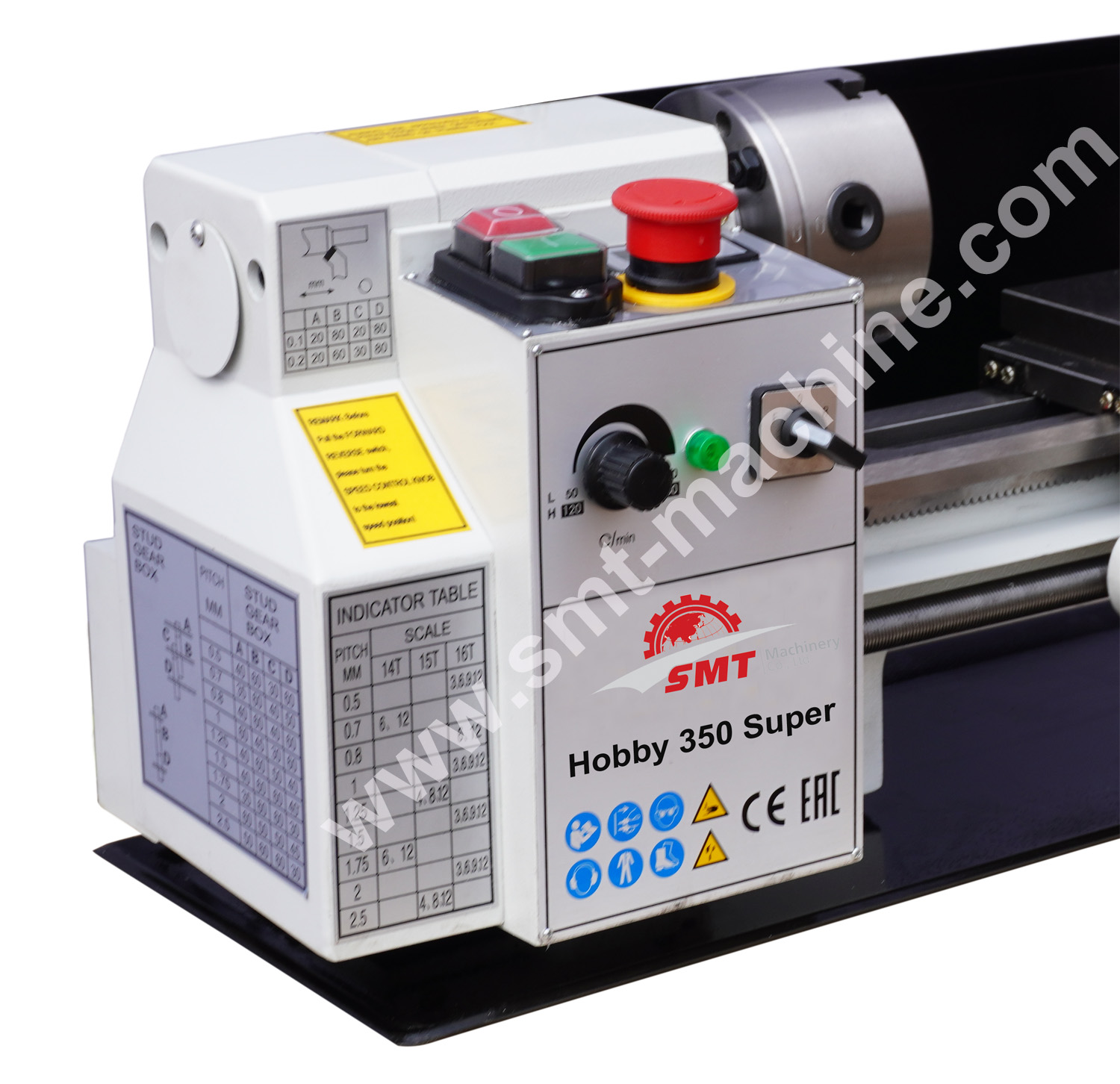

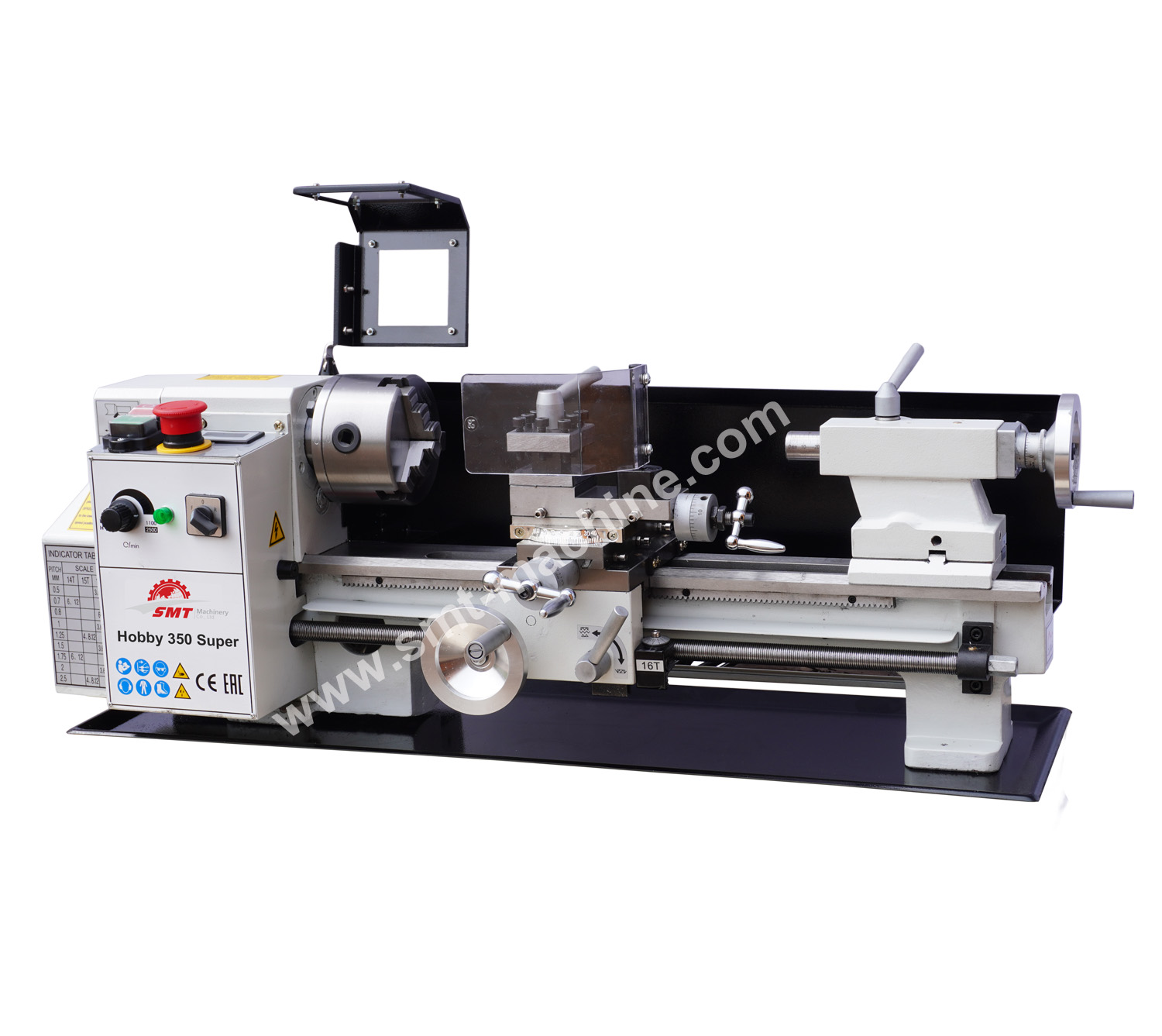

Hobby 350 Super
Feature:
· Compact precision lather for model-makers and amateurs
· Leadscrew for automatic longitudinal feed and thread cutting
· Quick and easy by electronically adjustable speed
· Hardened and precision ground bedway
· Back gear for low and high speed ranges

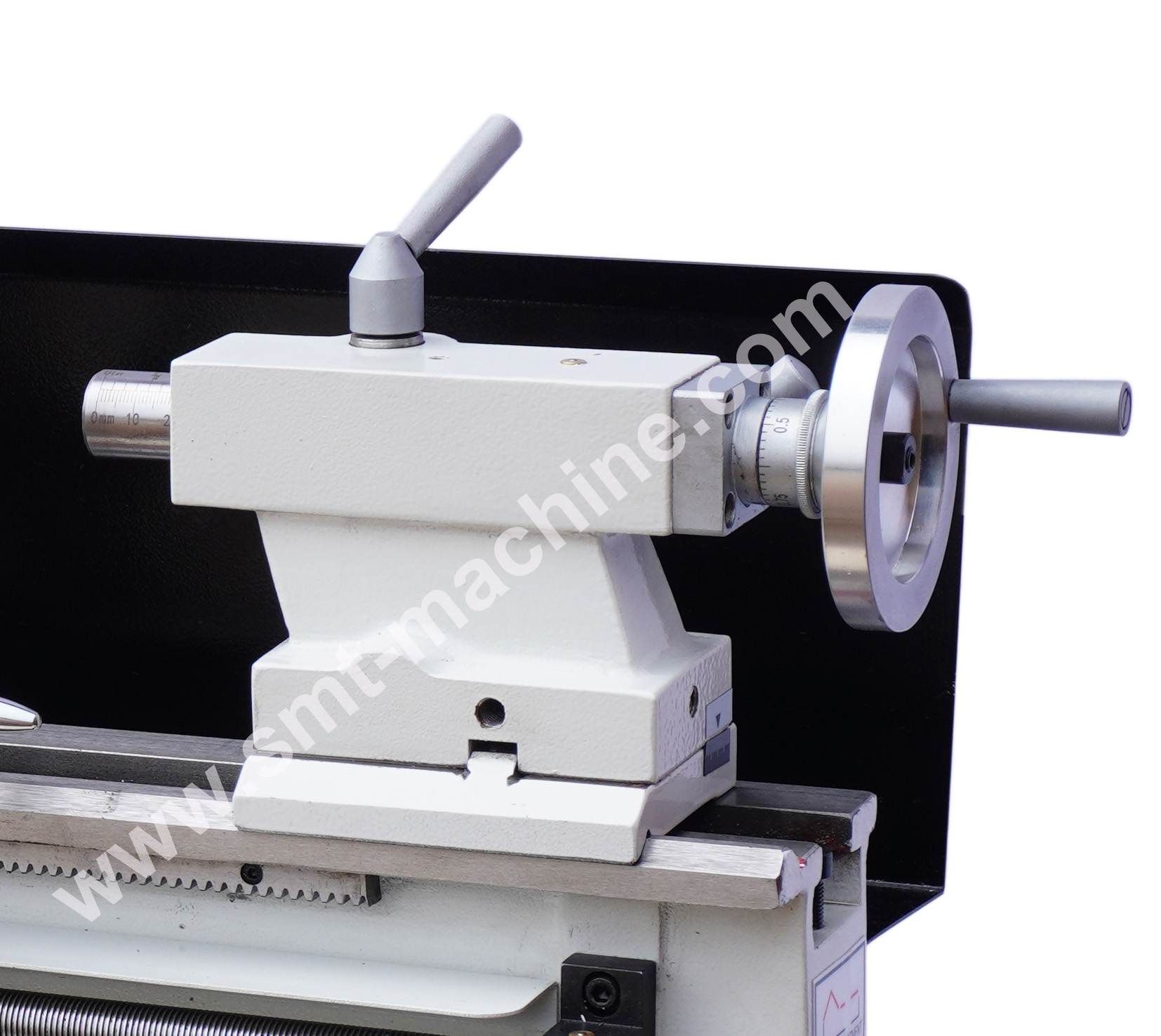

· Quick locking tailstock as standard
· Speed display as standard
· Forward and reverse switch
· 100mm 3-jaw chuck as standard
· Aluminium handwheels
· Metal steel spindle guard
· Tailstock and apron handwheel with scale
· Powerful brushless motor
· Full metal change gears and back gears
MESSAGE
Model   No.Hobby 350 Super
Distance between centres350mm
Swing over bed180mm
Width of bed83mm
Spindle bore taperMT3
Spindle bore20mm
Range of spindle speed50-2500rpm
Range of longitudinal feeds0.05-0.1mm/r
Range of cross feeds------
Range of inch threads12-52TPI
Range of metric threads0.4-2.0mm
Top slide travel40mm
Cross slide travel55mm
Tailstock quill travel40mm
Tailstock quill taperMT2
Net weight50kg
Gross weight55kg
Motor power (DC brushless motor)450W
Dimension of machine750x280x300mm
Packing size800×370×420
Standard AccessoriesOptional Accessories
100mm 3-jaw chuck100mm 4-jaw chuck
Speed displayFollow rest
Safety spindle coverSteady rest
Top rest coverFace plate
Metal change gearsThreading dial
Dead centers Leadscrew cover
Toolbox & toolsQuick change tool post

2-axis digital readout
